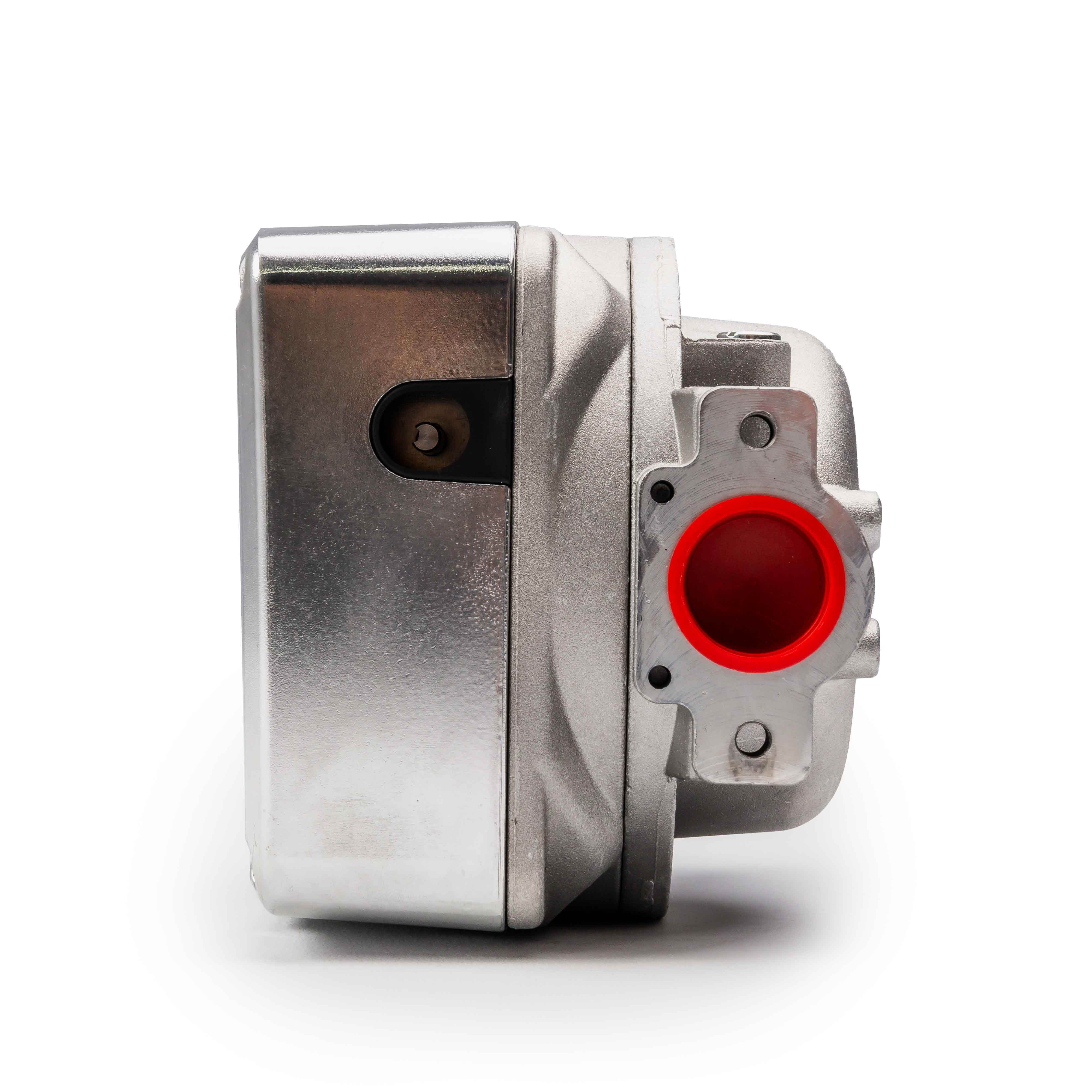

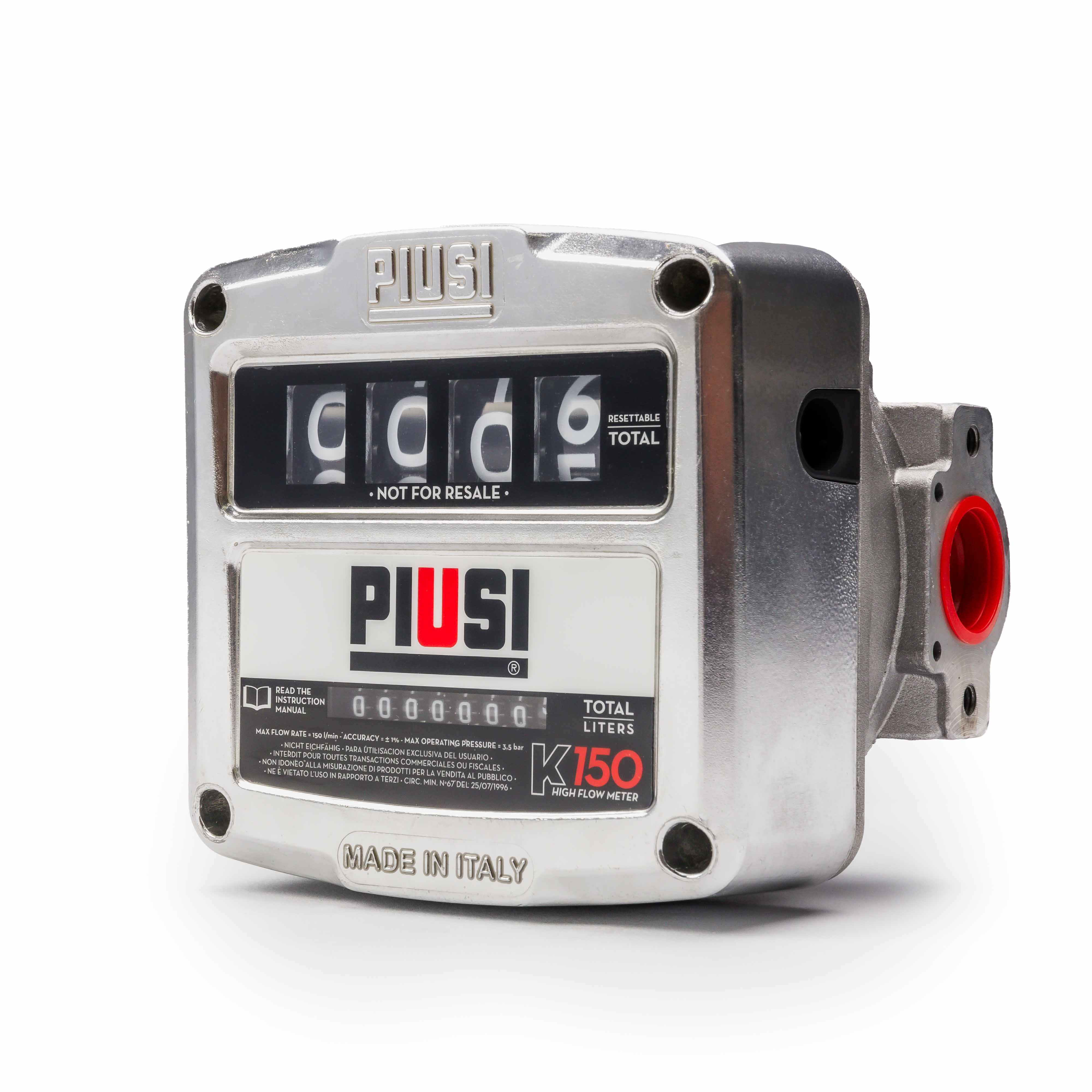

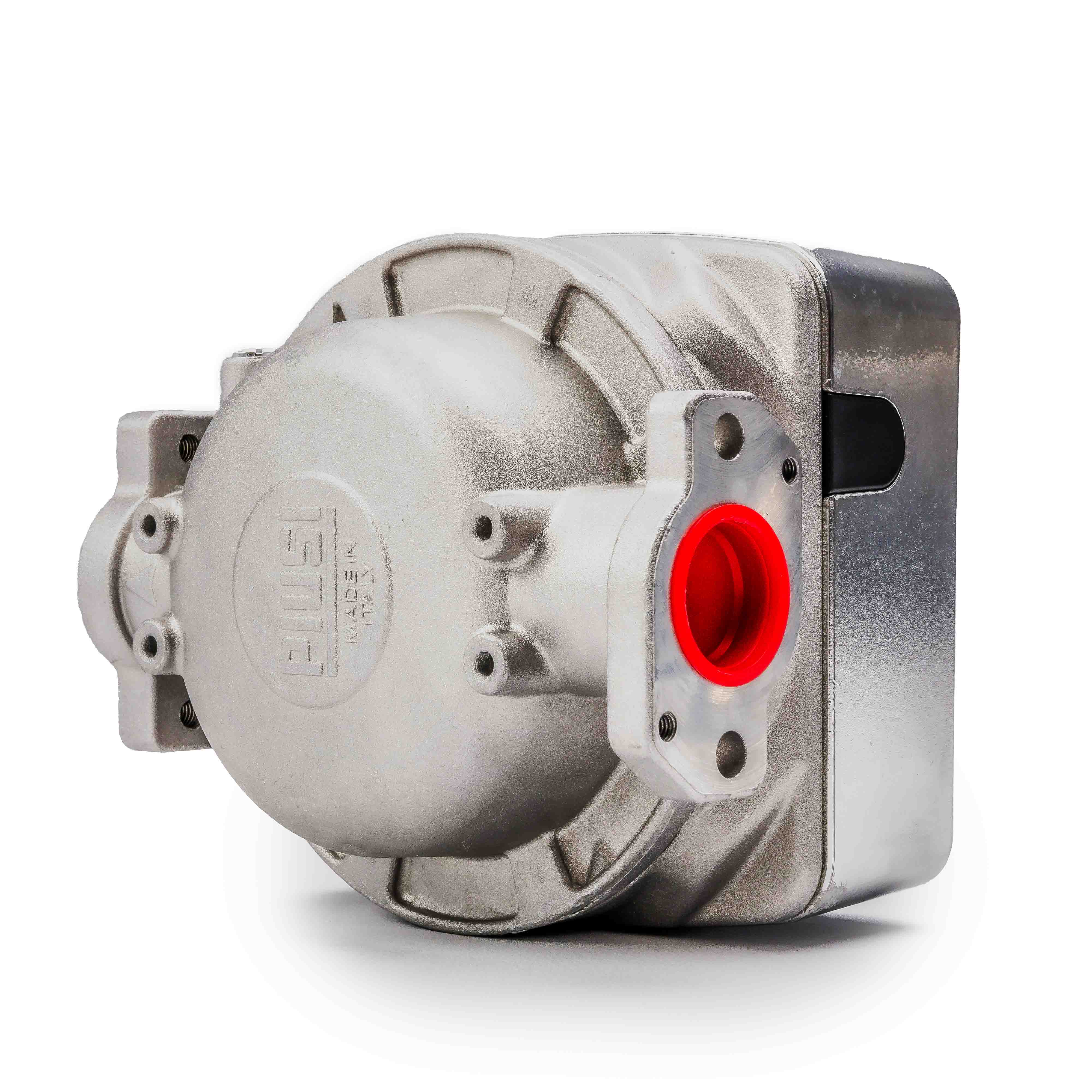

Piusi K150 ATEX Mechanical Meter DN25 25-150 L/min

Name: Piusi K150 ATEX Mechanical Meter DN25 25-150 L/min
Brand: Adam Pumps spa
SKU: F00555D00
Price: 748.00 AUD
Availability: InStock

Part no.F00555D00

SUZZARA ITALY

Part no.: F00555D00
Marking: ATEX
Fluids: Diesel, Petrol

$748.00In stock

Dispatch: 1 to 2 business days from Deception Bay QLD
Warranty: 12 months

Data SheetPDF ManualPDF PartsPDF

Technical data

SPECIFICATIONS

Inlet and Outlet: DN25 (1") F BSP
Operating Pressure: 3.5 Bar (50PSI)
Flow Rate: 25-150 l/min
Precision: ± 1%
Repeatability: 0.3%
Packaging: 185mm L x 185mm W x 170mm H
Weight: 2.2kg
Meter Dimensions: 172mm L x 151mm W x 130mm H
Suitable For Use With: Diesel and Petrol
Body and Cover: Aluminium
Nutating Disc Chamber: Technopolymer

Description

OVERVIEW

The Piusi K150 ATEX Mechanical Meter, from GO Industrial, is designed to be used with both Diesel and Petrol, up to 150 l/min dispensing. The K150 is easy to calibrate and easy to use. The meter is supplied with a sturdy aluminium body. The K150 has been tested in PIUSI laboratories for over 4 million litres to guarantee maximum reliability.
