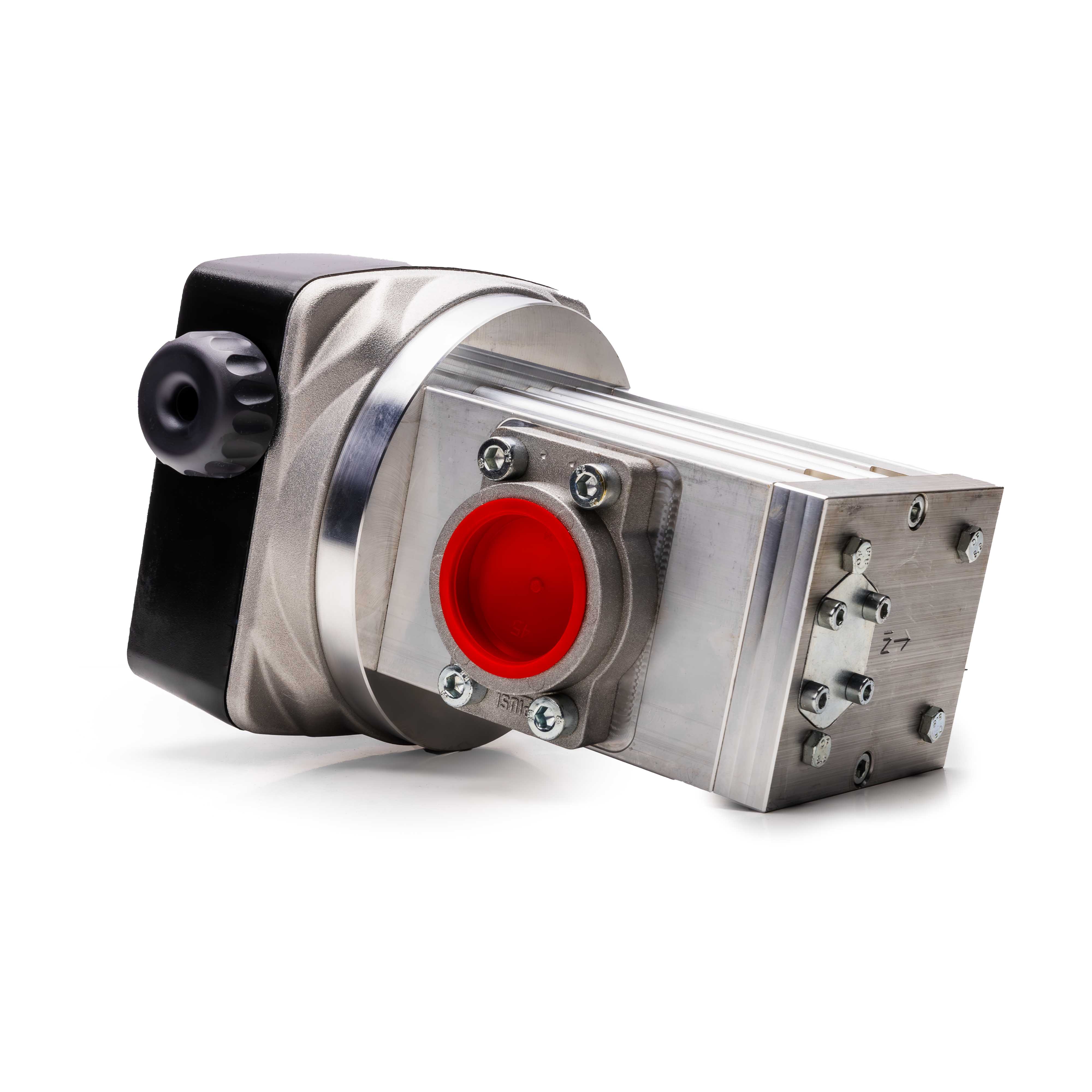

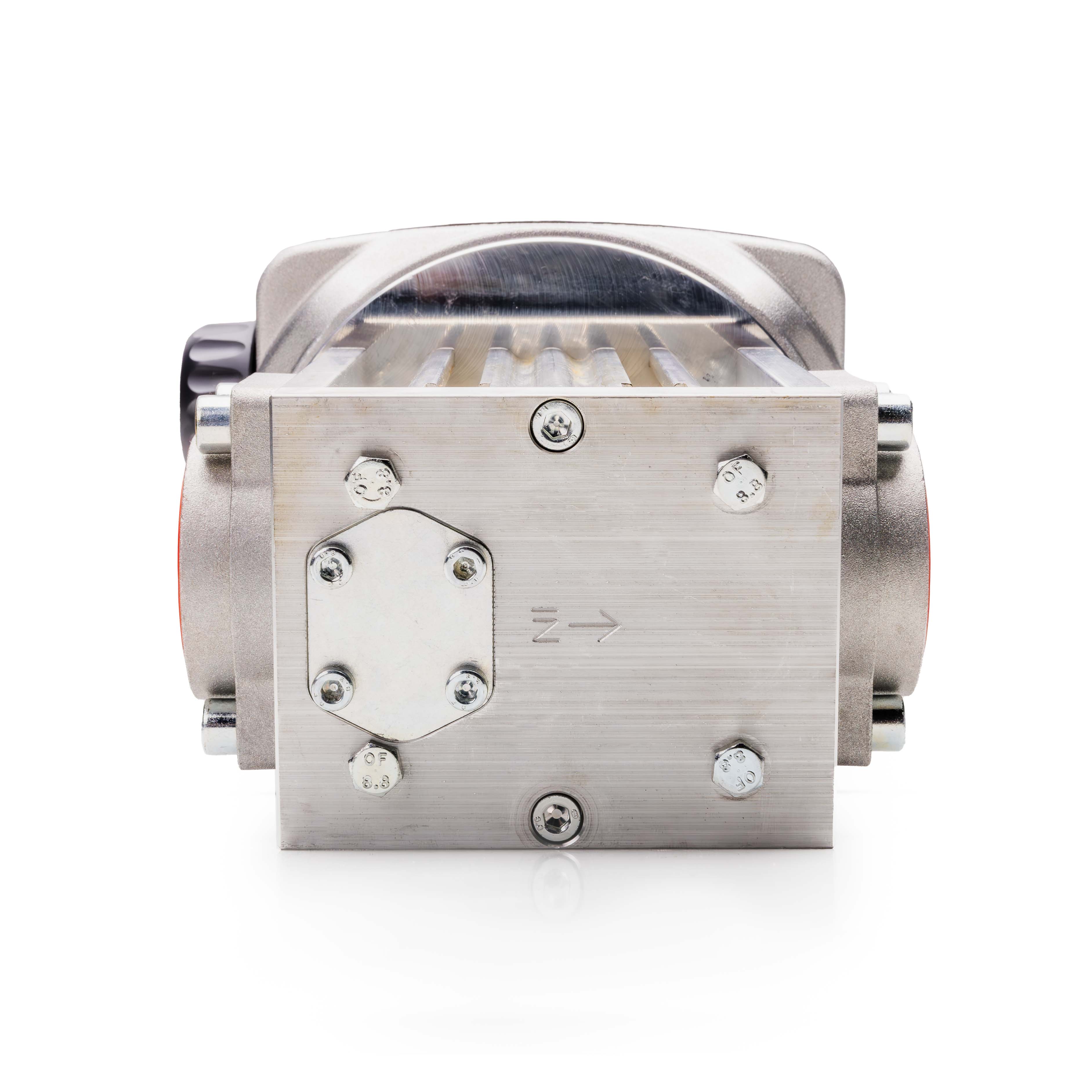

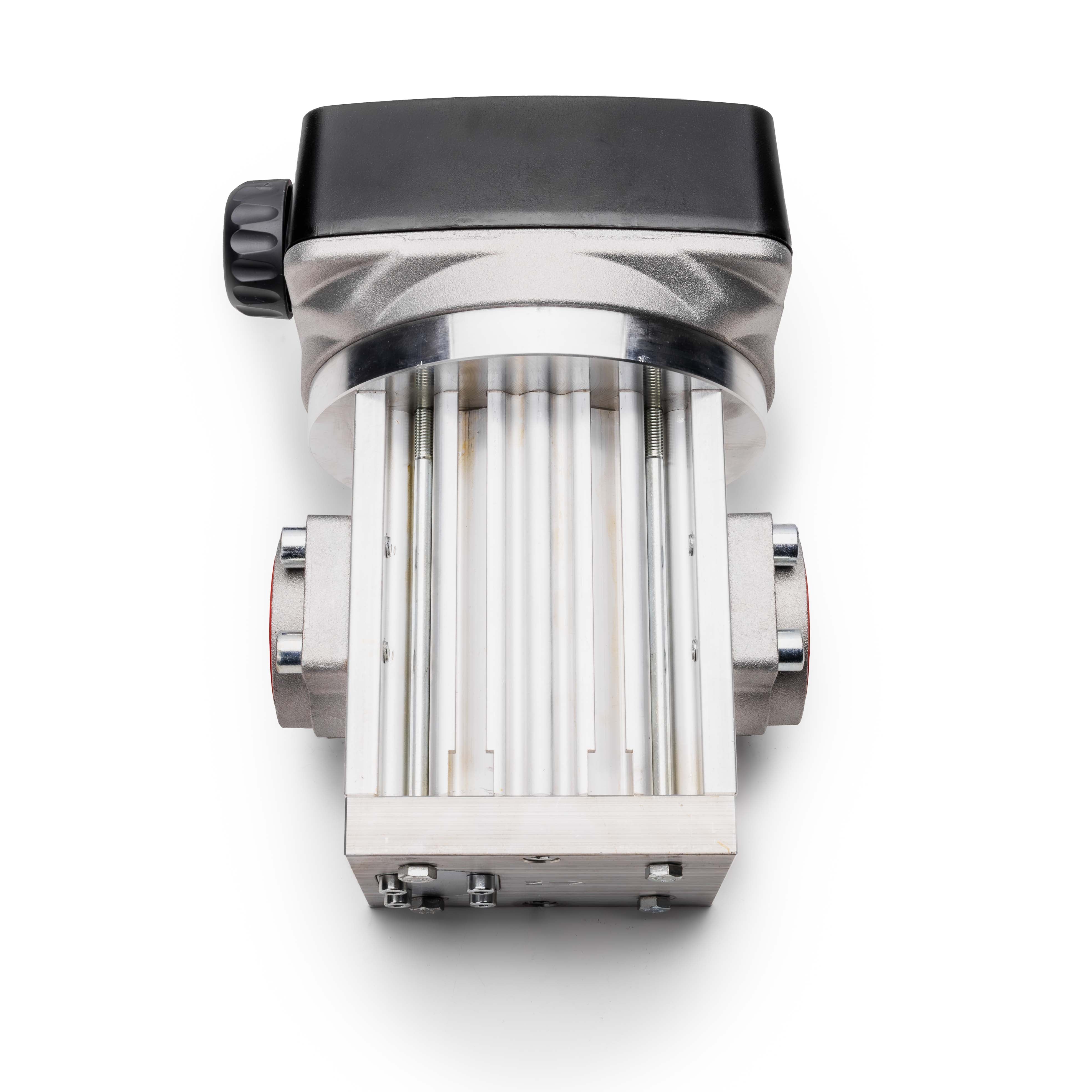

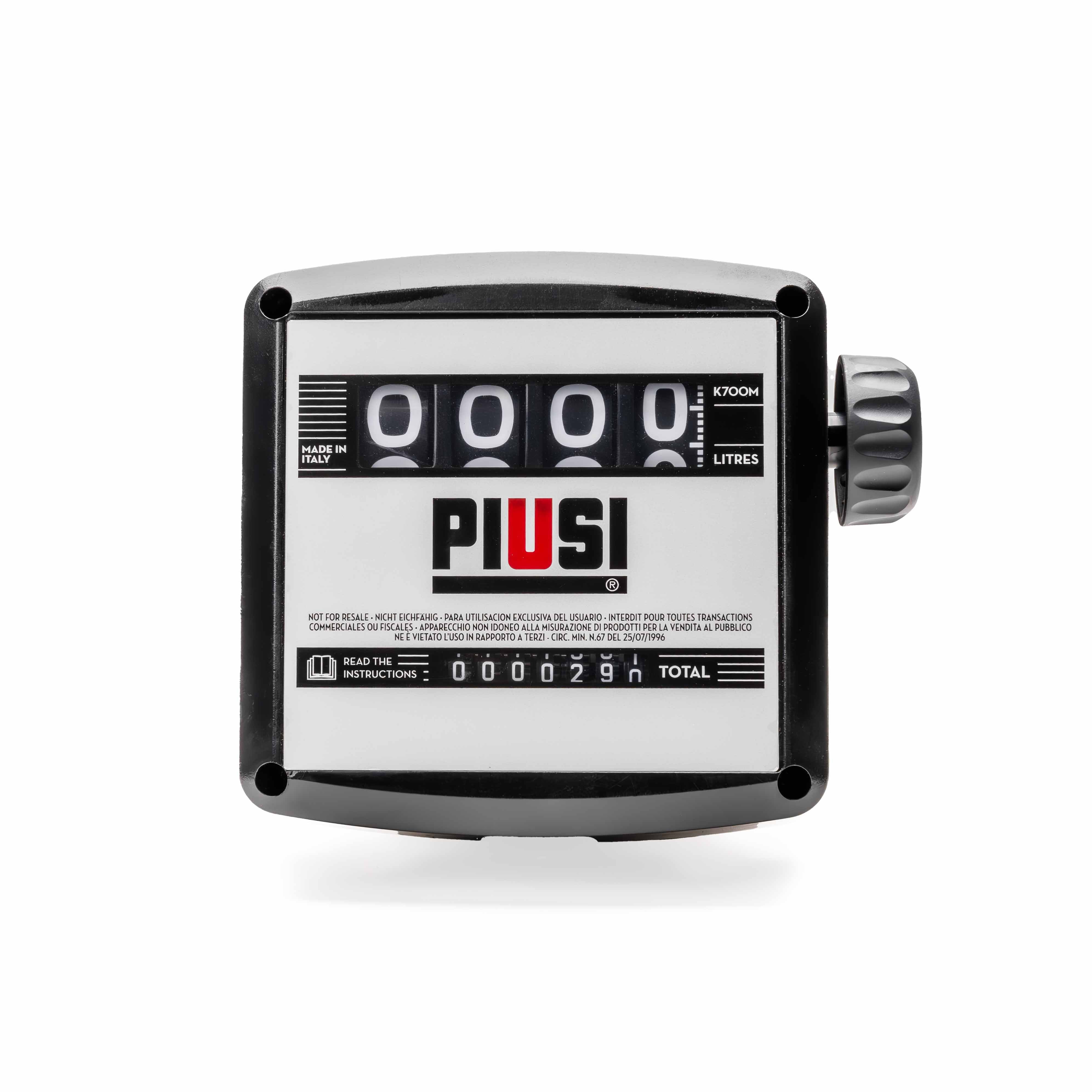

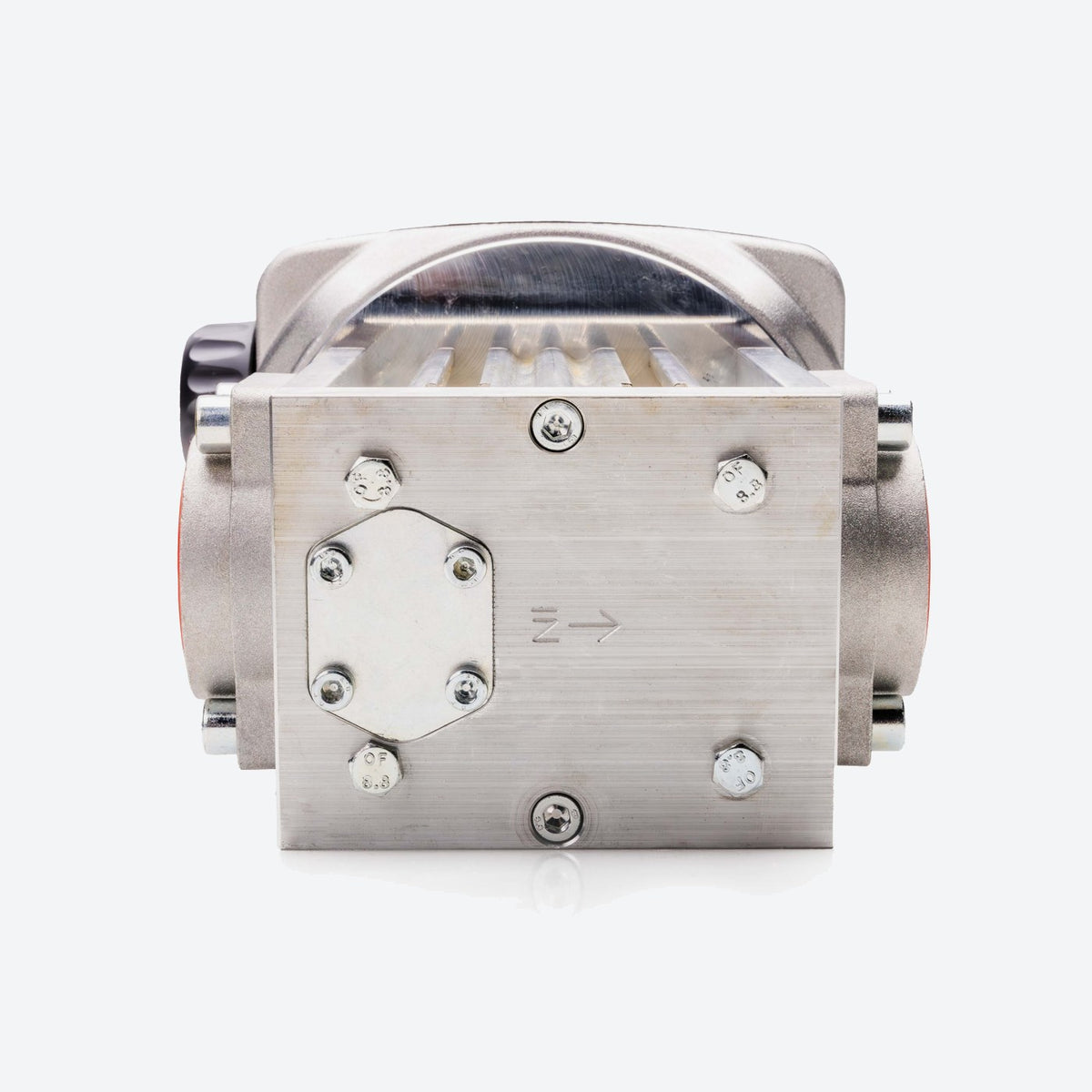

Piusi K700 Mechanical Meter 40 mm 20-200 L/min

Piusi K700 Mechanical Meter 40 mm 20-200 L/min

Part no.F00540000
PiusiSUZZARA ITALY
Part no.
F00540000
Fluids
Diesel
$1,634.54In stock
Dispatch
1 to 2 business days from Deception Bay QLD
Warranty
12 months
Data SheetPDFManualPDFPartsPDF

Technical data

SPECIFICATIONS

  • Inlet and Outlet: DN40 (1 1/2") F BSP
  • Operating Pressure: 10 Bar (145 PSI)
  • Flow Rate: 40-200 l/min
  • Precision: ± 1.5%
  • Repeatability: 0.3%
  • Packaging: 240mm L x 240mm W x 275mm H
  • Weight: 4.6kg
  • Body: Aluminium
  • Gears: Technopolymer
  • Suitable For Use With: Diesel

Description

OVERVIEW

The Piusi K700 Mechanical Flow Meter, from GO Industrial is suitable for the measurement of bulk diesel dispensing up to 200lpm.  The meter is designed with elliptical gears that provide high accuracy over a wide range of flow rates together with reduced loss of head.   The Piusi K700 is supplied with an inlet strainer, to protect the metering mechanism.  The inlet and outlet are DN40 (1 1/2") F BSP
