Piusi BI-PUMP Spare Parts
Identifying a part
- Locate the item on the 3D assembly or the exploded view in the spare parts list.
- Read the part number from the list or from the old part.
- Enter it in the filter below.
3D assembly
Loading model
Select a part on the model.
Illustration only. Check the part number against the spare parts list (PDF) before ordering.
| Select | Part no. | Description | Price | Dispatch | Qty | Add |
|---|---|---|---|---|---|---|
| R0989300A | Chamber Cover Kit | $32.00 | 14 to 16 weeks from Italy | |||
| R09963000 | O-Ring Gasket 3237 NBR (10 pcs) | $15.00 | In stock | |||
| R13282000 | Rotor Kit with Key for Panther AC/DC | $99.00 | 14 to 16 weeks from Italy | |||
| R13285000 | Key Kit for Panther DC | $16.00 | 14 to 16 weeks from Italy | |||
| R11276000 | Kit Vanes and Springs (note 2 x kits are needed per pump) | $99.00 | In stock | |||
| R10132000 | Sealing Ring, 11 mm ID x 19 mm OD x 7 mm | $18.00 | In stock | |||
| R1269500A | Bypass Valve for BI-PUMP | $28.00 | 14 to 16 weeks from Italy | |||
| R13959000 | Switch Kit for BI-PUMP 12V | $220.00 | 14 to 16 weeks from Italy | |||
| R13962000 | Switch Pin Kit for BI-PUMP | $160.00 | 14 to 16 weeks from Italy | |||
| F0918000A | Flange Kit 1in BSP | $99.00 | In stock | |||
| R13958000 | O-Ring Gasket 135 mm x 2 mm (10 pcs) | $48.00 | 14 to 16 weeks from Italy | |||

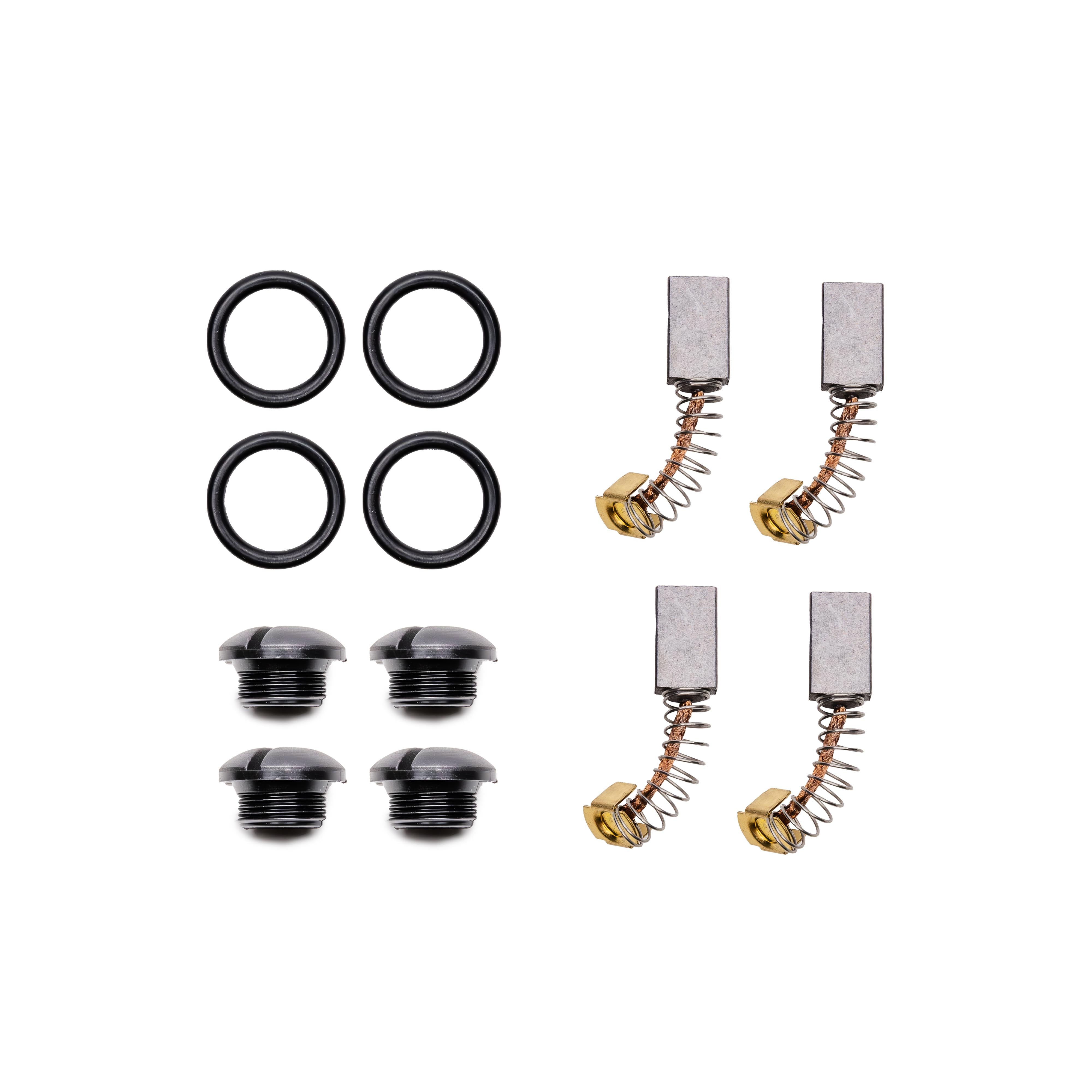

| R14924000 | Motor Brushes Kit for BI-PUMP 12/24V | $120.00 | 14 to 16 weeks from Italy | |||
| R14140000 | Pump Base Kit for BI-PUMP | $140.00 | 14 to 16 weeks from Italy | |||
| F1420000B | Handle Kit for BI-PUMP | $180.00 | 14 to 16 weeks from Italy | |||
| F1433400A | Cable 2 x 6 mm2, 2 m, for BI-PUMP | $120.00 | 14 to 16 weeks from Italy | |||
| F1433500A | Cable 2 x 6 mm2, 4 m, for BI-PUMP | $180.00 | 14 to 16 weeks from Italy | |||
| R14991000 | Cover Kit with Screws for BI-PUMP | $80.00 | 14 to 16 weeks from Italy | |||
| R13965000 | Switch Kit for BI-PUMP 24V | $220.00 | 14 to 16 weeks from Italy | |||
| R23451000 | Brush Covers Kit for BI-PUMP (4 pcs) | $55.00 | 14 to 16 weeks from Italy |
Genuine Piusi spare parts for the BI-PUMP 12V and 24V DC. The switch kit for the 12V version is R13959000.
