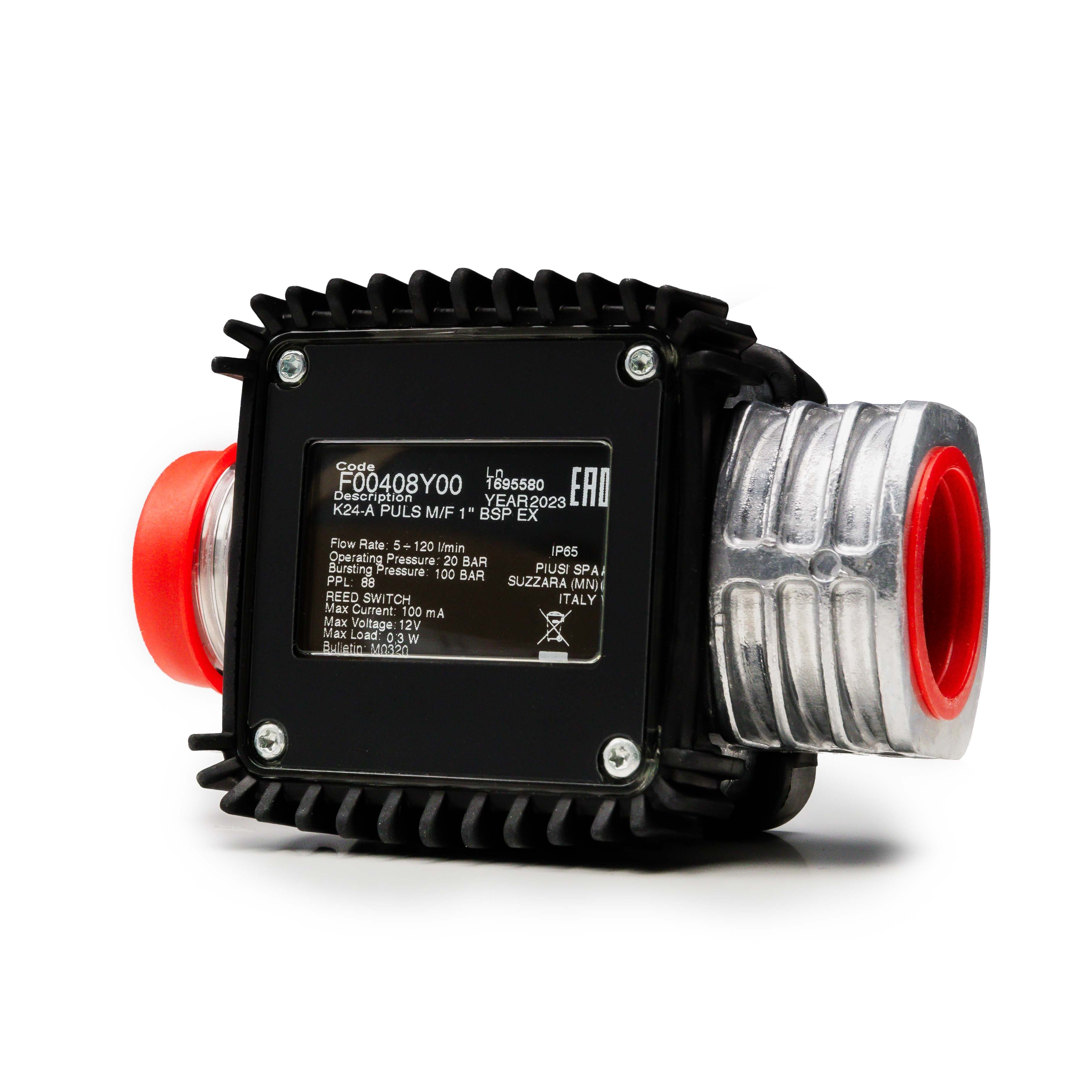

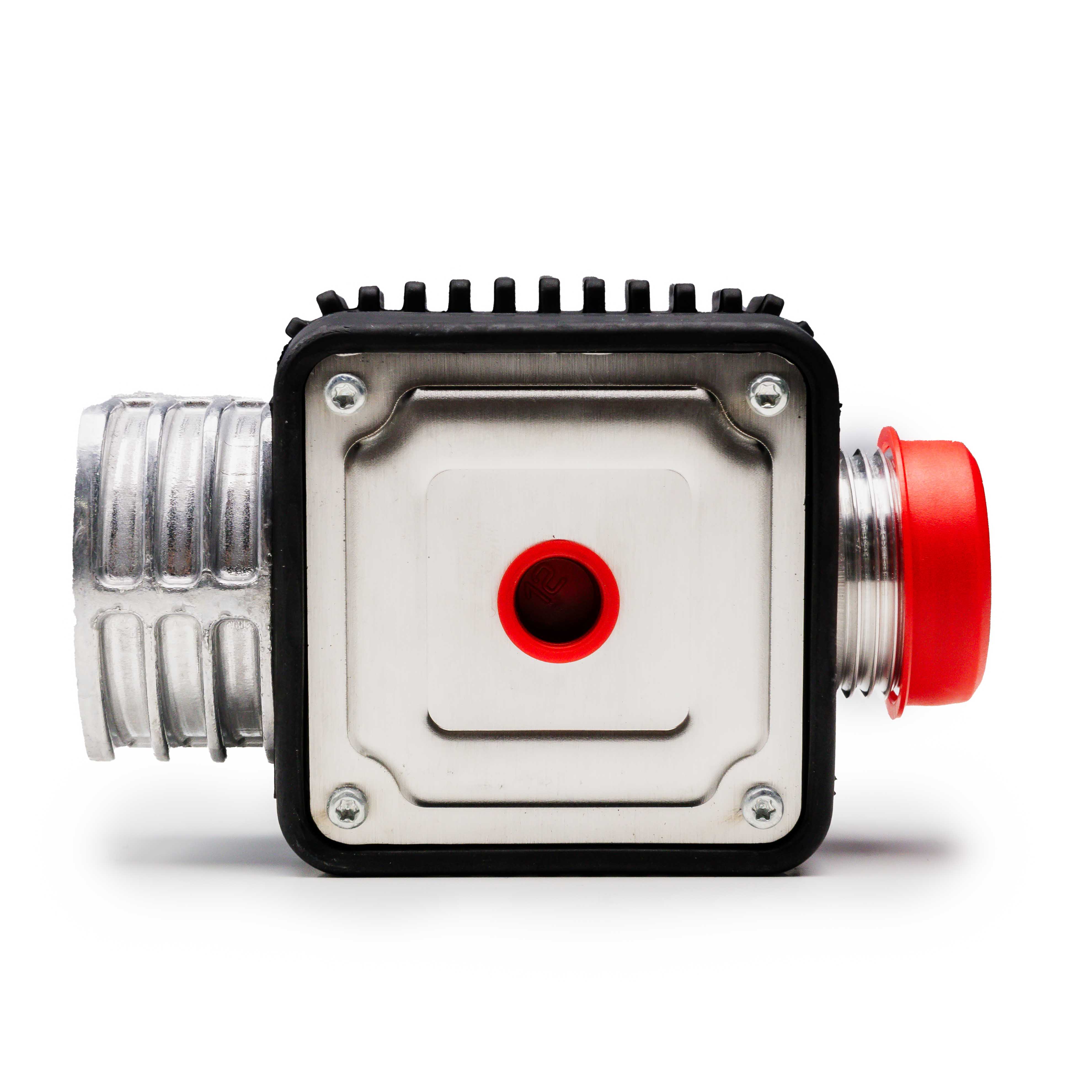

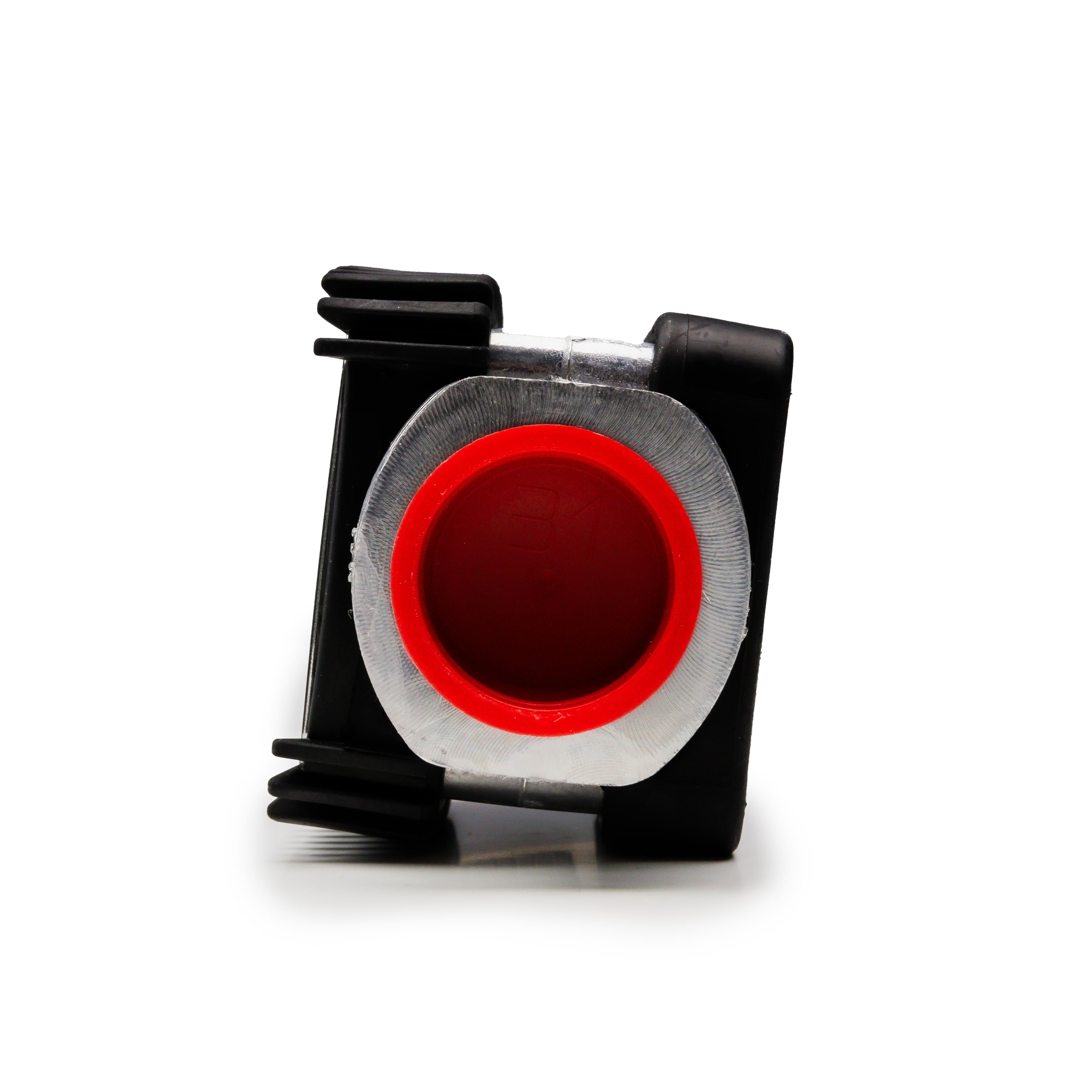

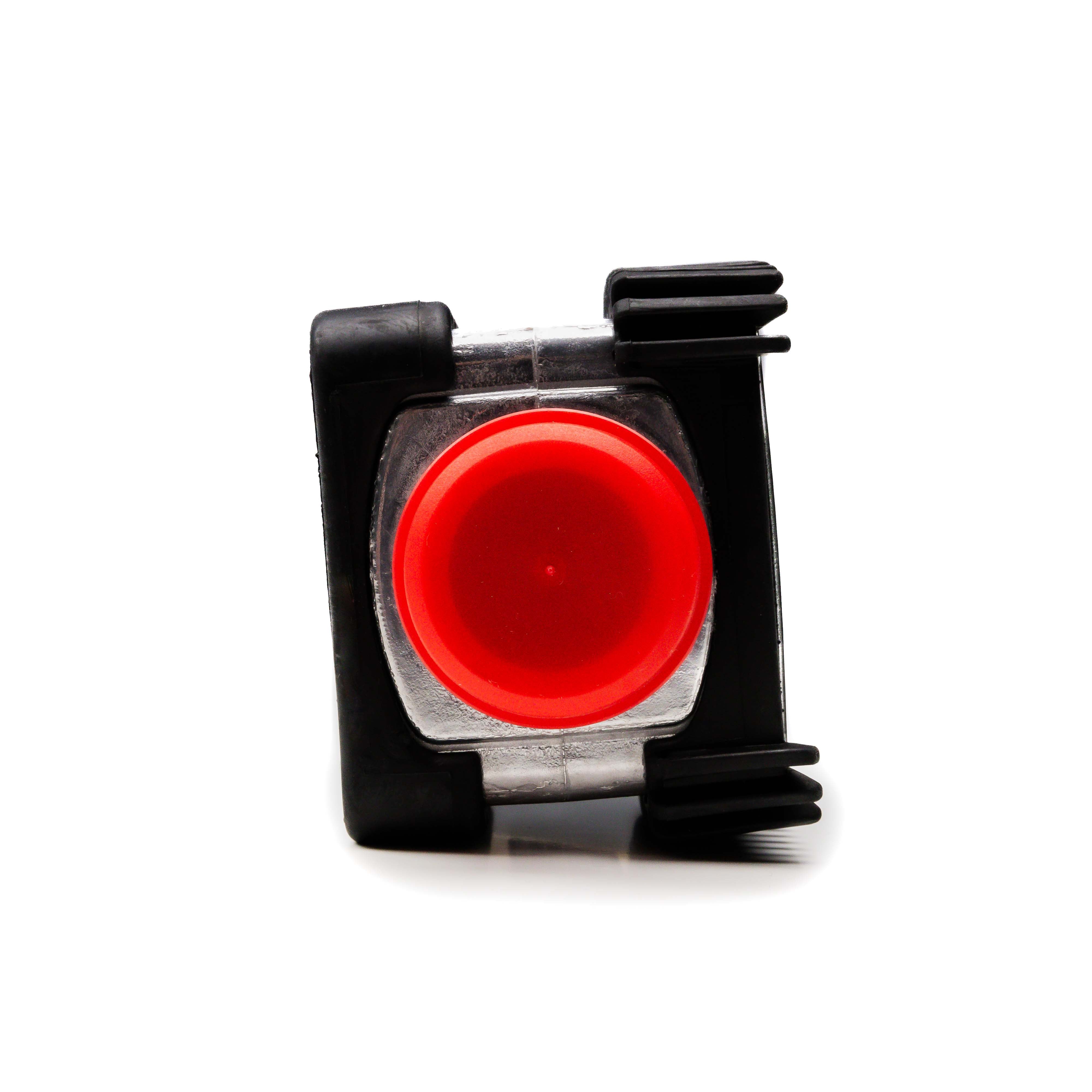

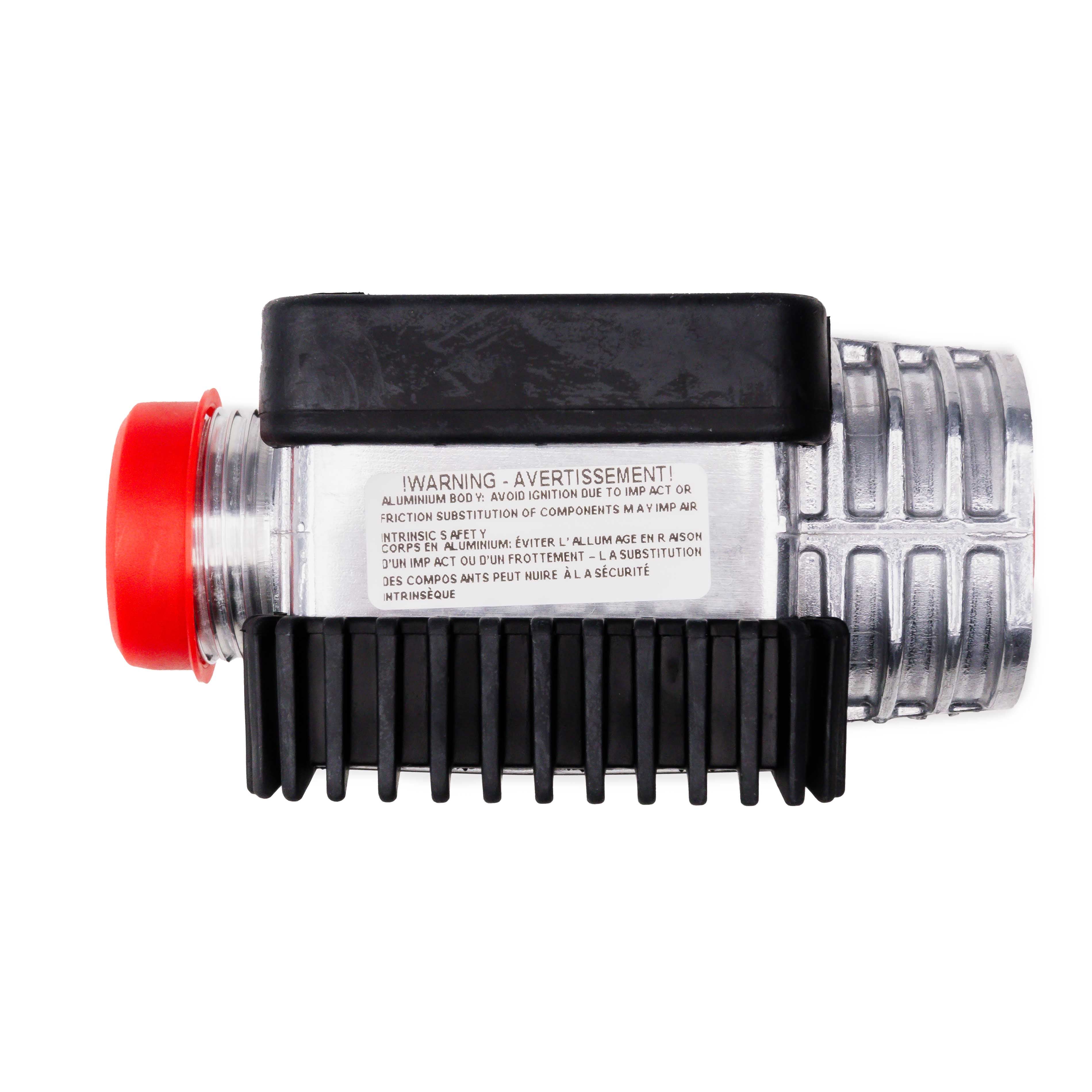

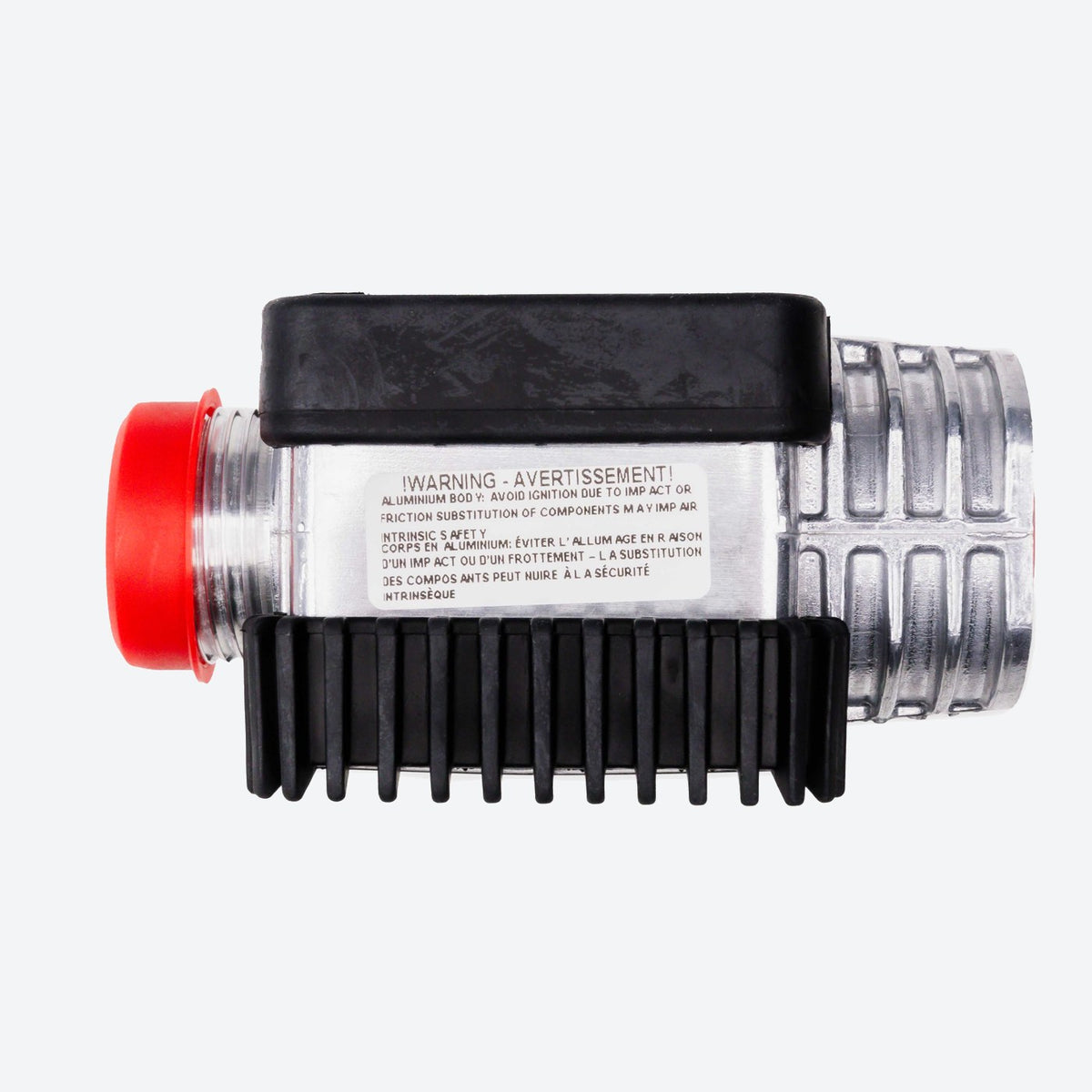

Piusi K24 ATEX Pulse Meter 1" BSP

Name: Piusi K24 ATEX Pulse Meter 1" BSP
Brand: Adam Pumps spa
SKU: F00408Y00
Price: 300.00 AUD
Availability: InStock

Part no.F00408Y00

SUZZARA ITALY

Part no.: F00408Y00
Marking: ATEX
Fluids: Diesel, Petrol, Aviation Fuel

$300.00~~$356.00~~In stock

Dispatch: 1 to 2 business days from Deception Bay QLD
Warranty: 12 months

Data SheetPDF ManualPDF Spare PartsPDF

Technical data

SPECIFICATIONS

Flow Rate: 7-120ltr Per Min
Pulses: 92 per ltr
Inlet: 1” M BSP
Outlet: 1” F BSP
Accuracy: +/-1% after calibration
Pulses Per Ltr: 92
Fluid Viscosity: 2-5.35 cSt
Max Fluid Temperature: - +50ºc
Bi-directional Turbine meter
ATEX / IECEX approved for use with petrol

Description

OVERVIEW

suitable for use with Petrol (Gasoline), Diesel and Aviation Fuels (AVGAS and JET-A1)

The Piusi K24 ATEX/IECEX Pulse Meter is a digital turbine pulse meter, designed for measuring the transfer of diesel and flammable liquids such as petrol, AVGAS and JET-A1.

This Piusi Pulse Meter has an aluminium body, making it very sturdy and durable, and is also bi-directional allowing the flow to be counted either way. A Pulse Meter has no electronic display it is used to interface consumption information with external management systems, or indicators allowing the information to be read and stored elsewhere.

The Piusi K24 ATEX/IECEX Pulse Meter can be used in flammable environments, and is designed for use in commercial fuel delivery systems.
