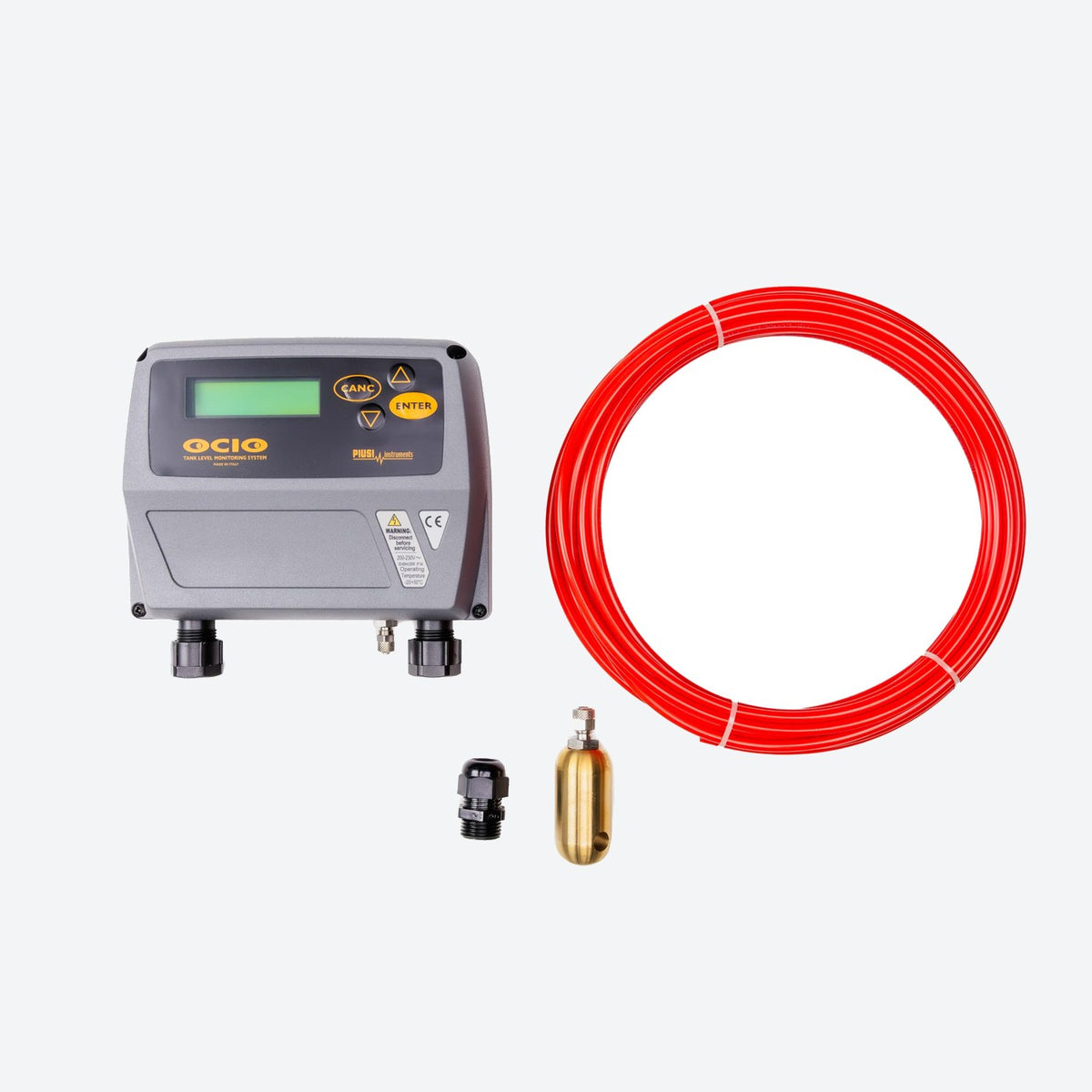

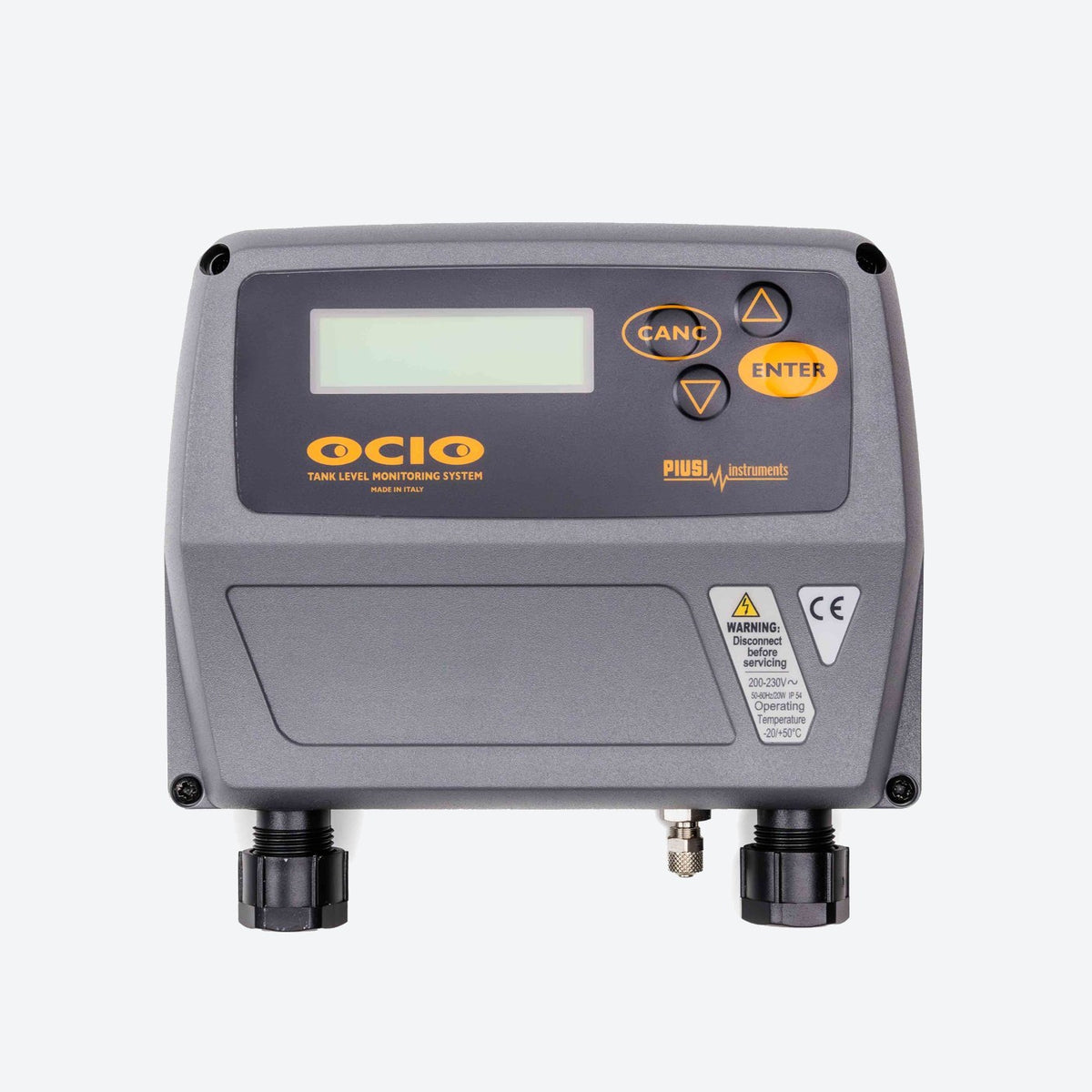

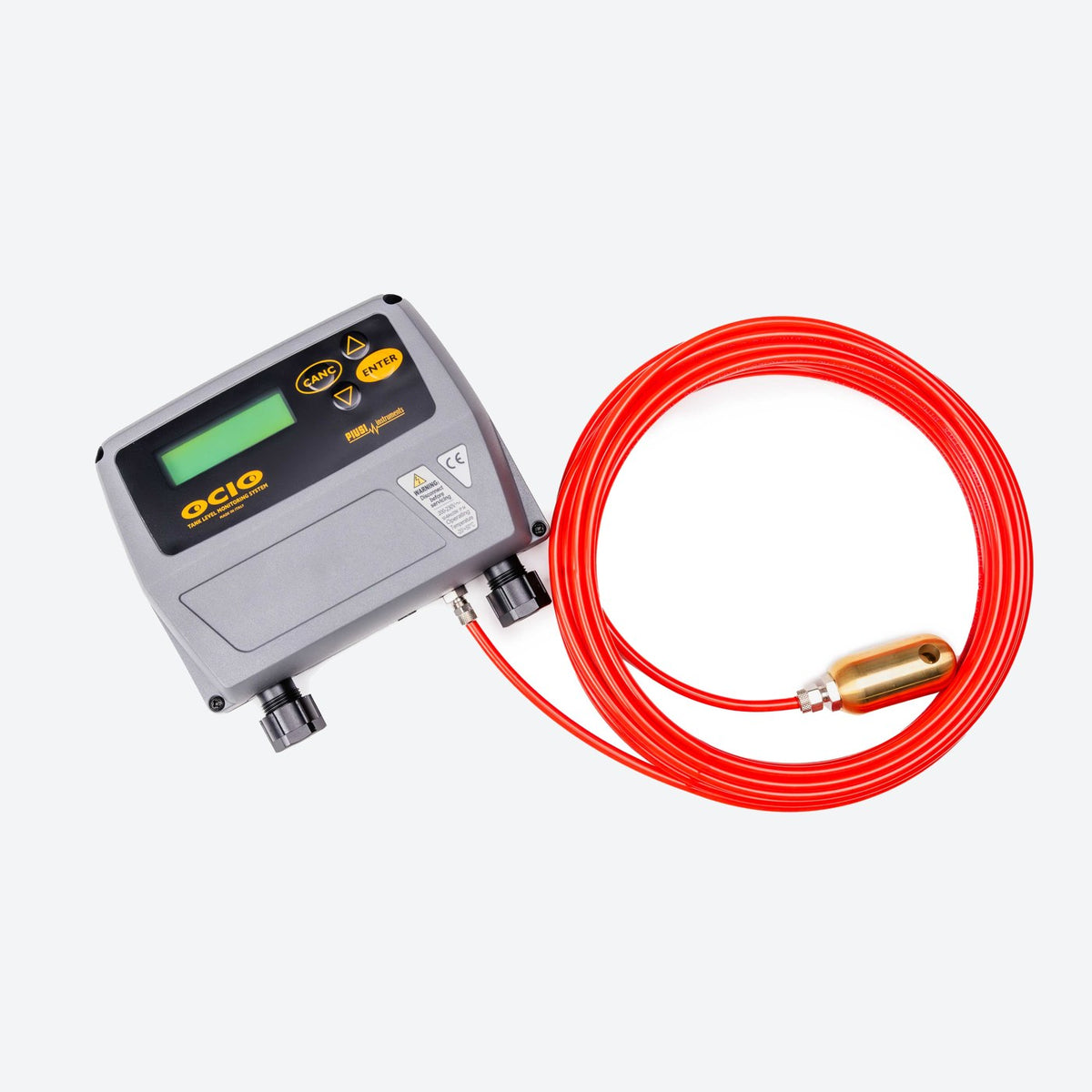

Piusi OCIO Automatic Tank Gauge F0075510D

OVERVIEW

The Piusi OCIO Automatic Tank Gauge, from GO Industrial, is a cost effective digital indication device that displays the contents of your tank.  The Piusi OCIO is suitable for use with Diesel and other liquids that are compatible with the materials of construction of the device.

Piusi OCIO has an accuracy of 5-7%.  The device has two inbuilt relays that can be used to signal high and low levels within the tank.  Tank levels can be view in the iFUEL Cloud if the Piusi OCIO is combined with iFUEL Lite, iFUEL PRO or iFUEL Tank

How Piusi OCIO Works

• Piusi OCIO works on the principle of differential pressure
• A fluid contained in a tank applies a pressure at the bottom of the tank,
• The pressure at the bottom of the tank is determined by the level and density of liquid stored ( L )

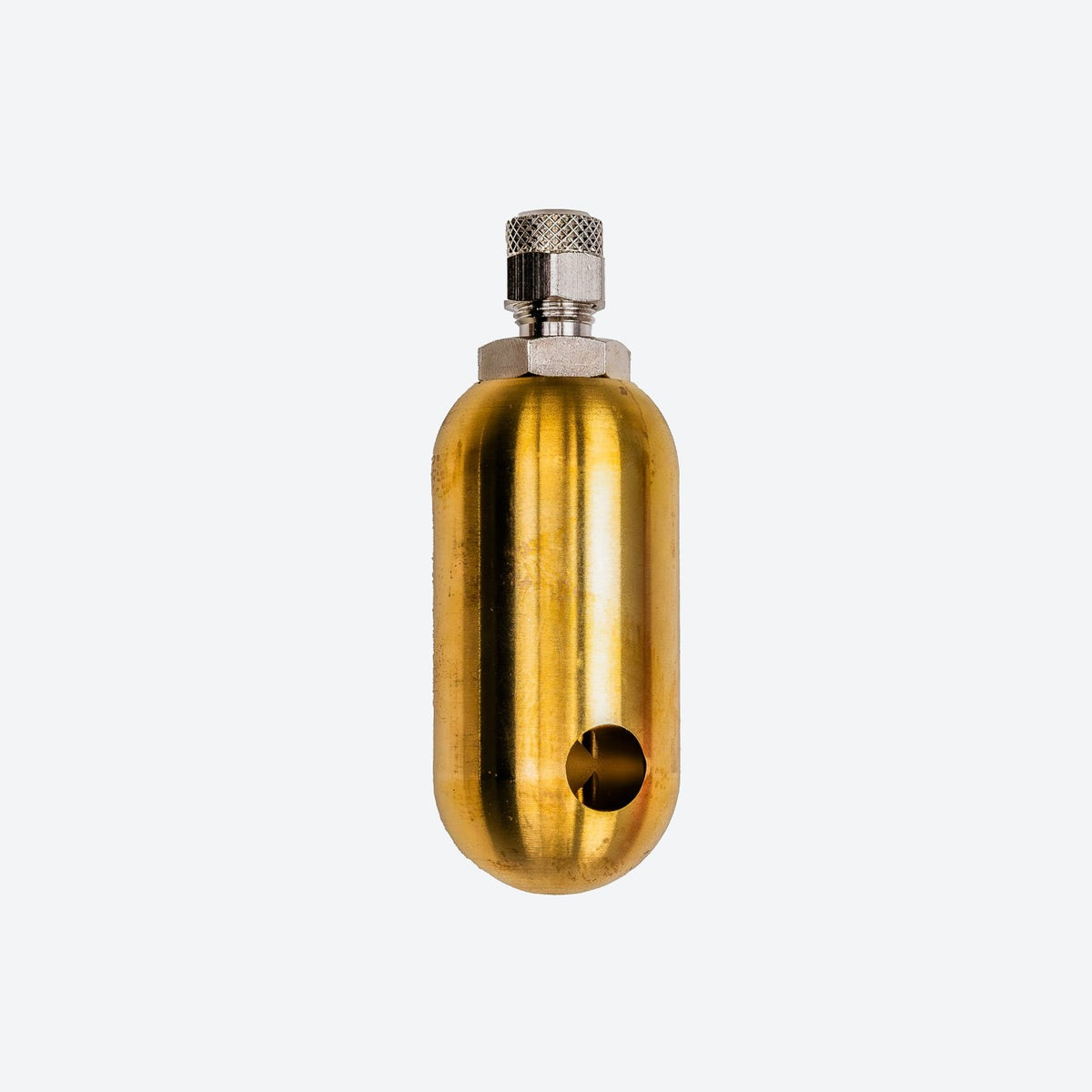

• Piusi OCIO measures the pressure applied by the fluid through a probe which is held at the bottom of the tank by a weight.
• Given the value of the Density ( D ) of the fluid stored in the tank, Piusi OCIO will automatically calculate the surface level of the liquid within the tank and show it on the display.
• The Density ( D ) of any fluid can be easily entered in the instrument by calibrating the Piusi OCIO.
• A microchip placed on the electronic circuit board automatically activates a small electric compressor located inside the console as is necessary
• The compressed air, and a specially designed control valve maintains the required air supply within the probe
• The microchip also controls an integrated heater that prevents the temperature inside the housing to fall below a pre-determined value, in order to allow accurate readings and avoid the forming of condensate on the circuitry.

Piusi OCIO Alarms

• The Piusi OCIO includes two alarms which can be used for
  • activating remote devices (such as audible or visual alarms)
  • for stopping any pumps that may be connected to the tank.
• For each of the two alarms, both the normally open contact and the normally closed contact are available.
• i.e.: No. 3 connectors are available for both alarms.
• The alarms can be set only after configuring a tank.
• The alarms can be set independently from one another; this means that you can have:
  • two alarms of different kinds (one H-level alarm and one L-level alarm)
  • two alarms of the same kind (two H-level alarms or two L-level alarms).
