Piusi PIT STOP 45 Spare Parts
Identifying a part
- Locate the item on the exploded view in the spare parts list.
- Read the part number from the list or from the old part.
- Enter it in the filter below.
| Select | Part no. | Description | Price | Dispatch | Qty | Add |
|---|---|---|---|---|---|---|
| R18005000 | Fuse 40A | $15.00 | 14 to 16 weeks from Italy | |||
| F16722000 | Hose 14 m 3/4in | $240.00 | 14 to 16 weeks from Italy | |||
| F0075000A | Big Hose Reel (Bare) for 3/4in BSP Hose | $820.00 | 14 to 16 weeks from Italy | |||
| F00603060 | A60 Automatic Nozzle with Swivel 1in BSP | $200.90 | In stock | |||
| R15328000 | Plastic Nozzle Holder, Blue | $44.00 | 14 to 16 weeks from Italy | |||
| F00357000 | 2 x BP3000 12V H | $300.00 | 14 to 16 weeks from Italy | |||
| R1793400A | Wiring Kit for PIT STOP 12V | $440.00 | 14 to 16 weeks from Italy | |||
| R18124000 | O-Ring Kit for PIT STOP | $35.00 | 14 to 16 weeks from Italy | |||
| F16770000 | 90° Elbow Kit without Flange | $44.00 | 14 to 16 weeks from Italy | |||
| R15415000 | Water Captor Filter Cartridge 70 l/min | $88.00 | 14 to 16 weeks from Italy | |||
| R1648500A | Bushing for O-Ring | $19.00 | 14 to 16 weeks from Italy | |||
| R17989000 | Diesel Hose 25 mm x 0.235 m | $49.00 | 14 to 16 weeks from Italy | |||
| R17960000 | Hose Clamp 31-34 mm (2 pcs) | $36.00 | 14 to 16 weeks from Italy | |||
| F1798700A | Water Captor Filter Head 1-12 UNF | $44.00 | 14 to 16 weeks from Italy | |||
| F1627900A | Big Hose Reel Rotating Support | $210.00 | 14 to 16 weeks from Italy | |||
| F1629800A | Big Hose Reel Fixed Base | $120.00 | 14 to 16 weeks from Italy | |||
| R16744000 | Nylon Roller for Hose Reels | $48.00 | 14 to 16 weeks from Italy | |||
| R16736000 | Hose Stopper 27 mm (3/4in) for Hose Reels | $78.00 | 14 to 16 weeks from Italy | |||
| R20306000 | Plate and Screws Kit for Big Hose Reel | $170.00 | 14 to 16 weeks from Italy | |||
| R16740000 | Hose Reel Knob (5 pcs) | $66.00 | 14 to 16 weeks from Italy | |||
| R16739000 | Shaft for Hose Reels | $130.00 | 14 to 16 weeks from Italy | |||
| F15473010 | 90° Hose Tail 3/4in | $24.00 | 14 to 16 weeks from Italy | |||
| R16742000 | Hose Collar 27 mm (3/4in) for Hose Reels | $80.00 | 14 to 16 weeks from Italy | |||

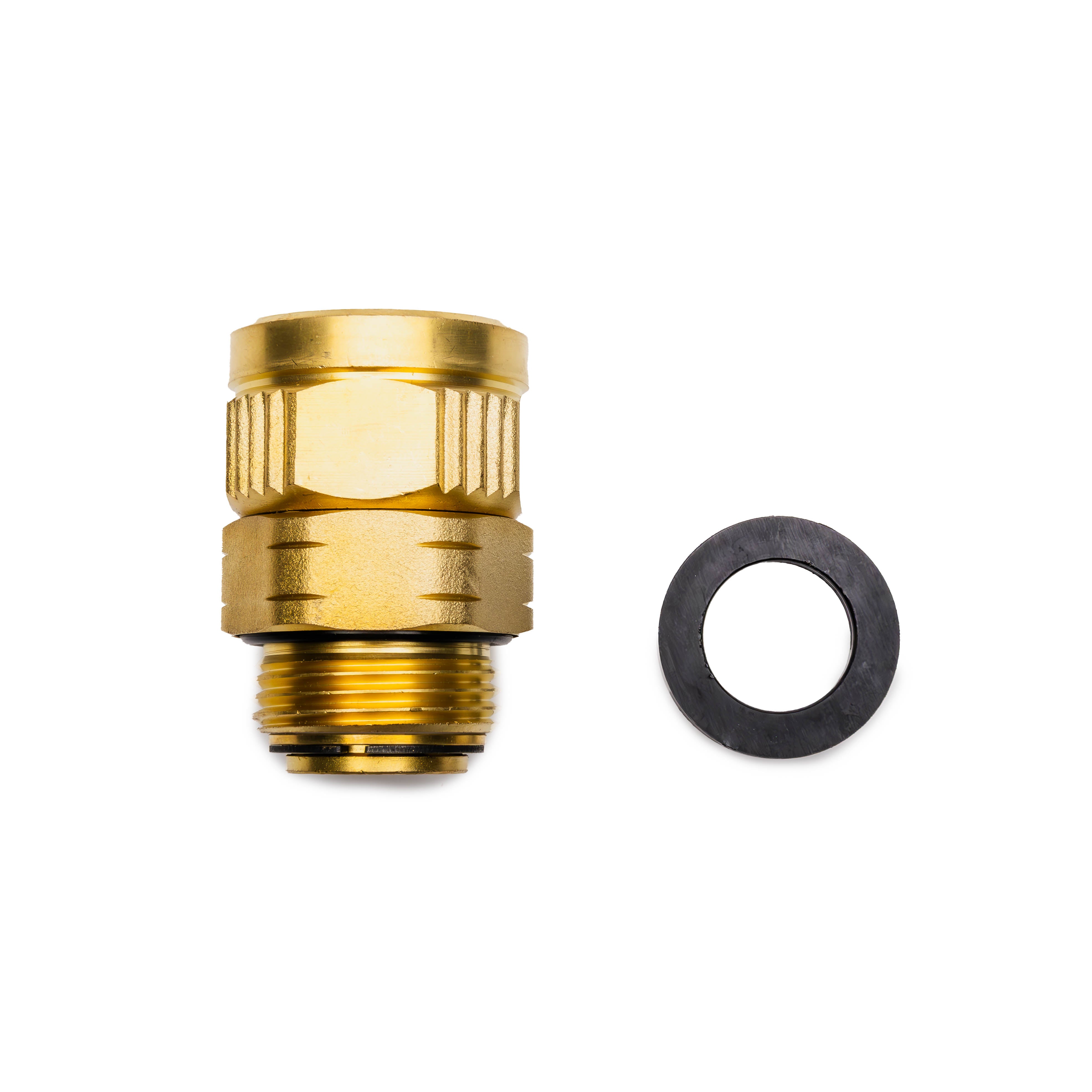

| R17521000 | Swivel 1.1 and Gasket Kit for Hose Reels | $95.00 | In stock | |||
| R16745000 | Spring Side Cover for Hose Reels | $180.00 | 14 to 16 weeks from Italy | |||
| R16735000 | Swivel Side Cover and Screw for Hose Reels | $180.00 | 14 to 16 weeks from Italy | |||
| R16741000 | Spring for 20 m 10 bar Hose Reels | $760.00 | 14 to 16 weeks from Italy | |||
| R16738000 | Ratchet Plate Wheel for Hose Reels | $180.00 | 14 to 16 weeks from Italy |
OVERVIEW
Genuine Piusi spare parts for the PIT STOP 45 dispensing module: hose reel parts, hose, nozzle, filter, wiring and fittings.
