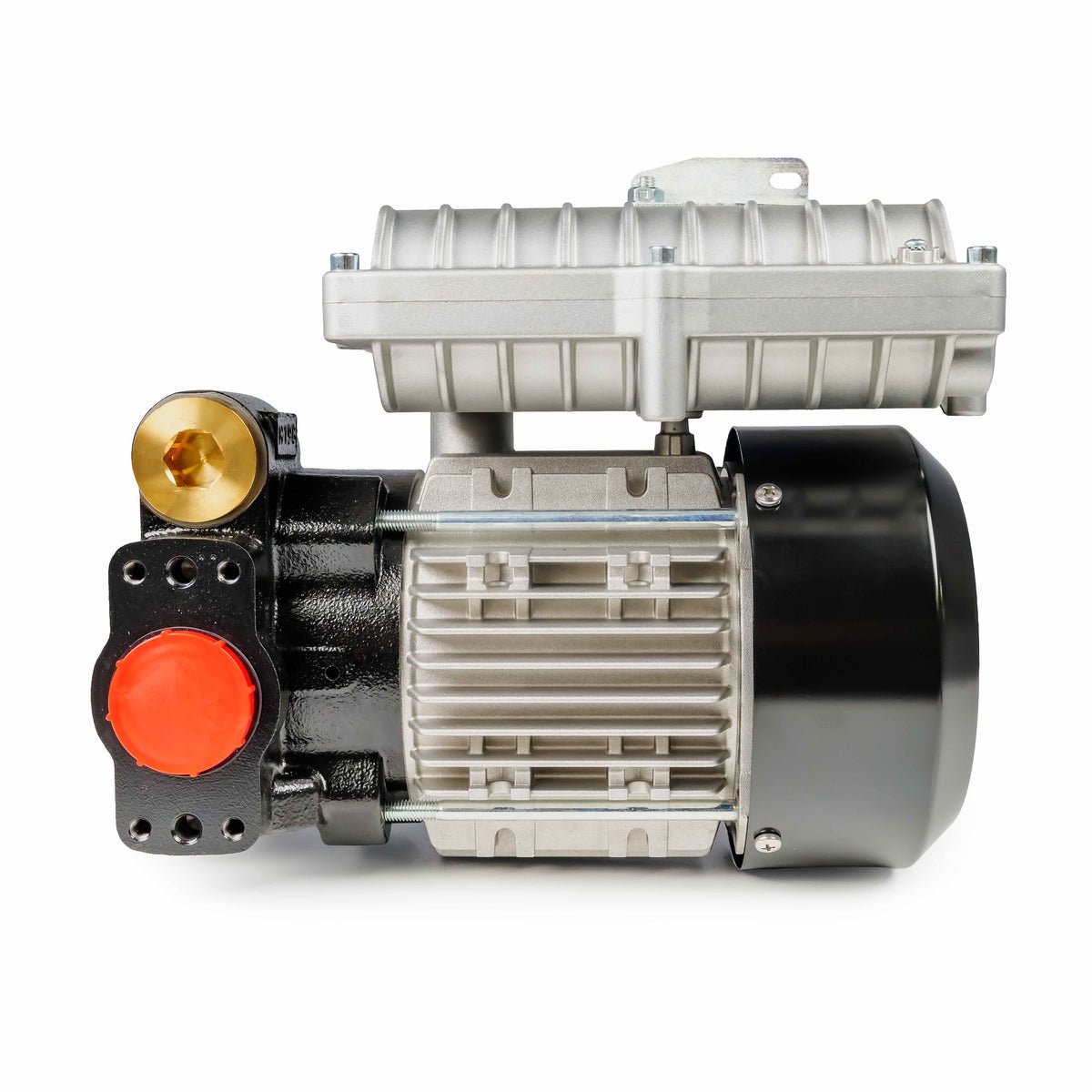

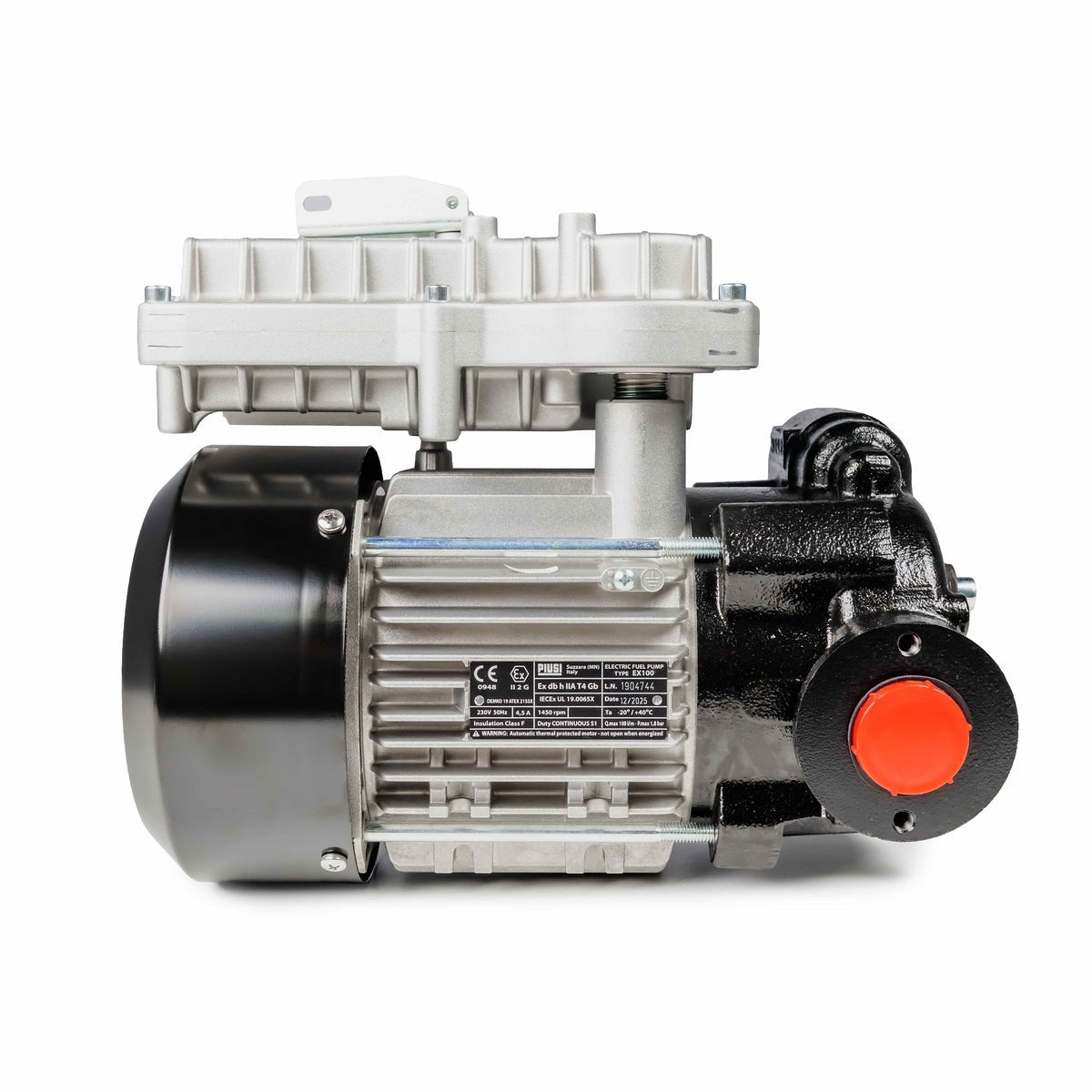

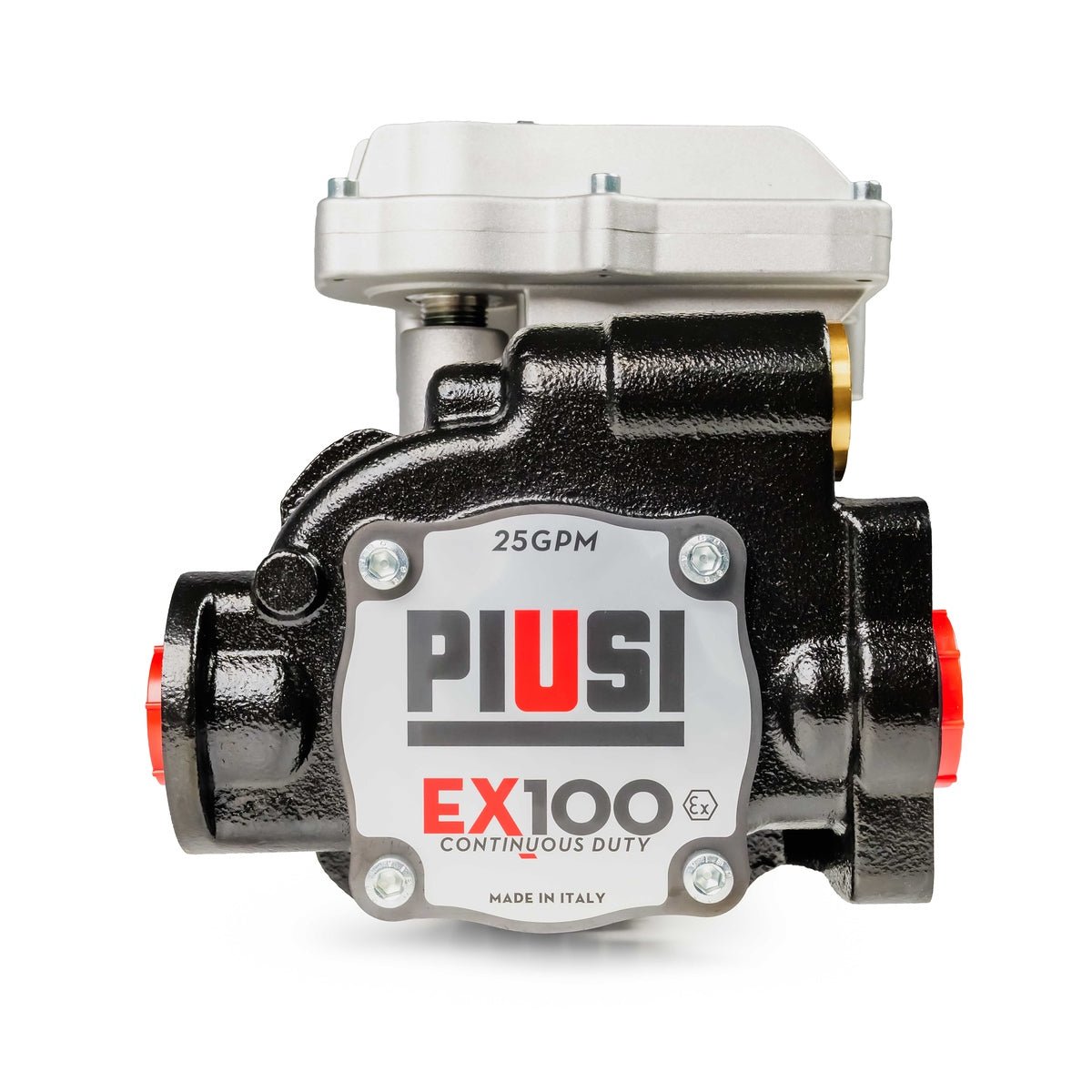

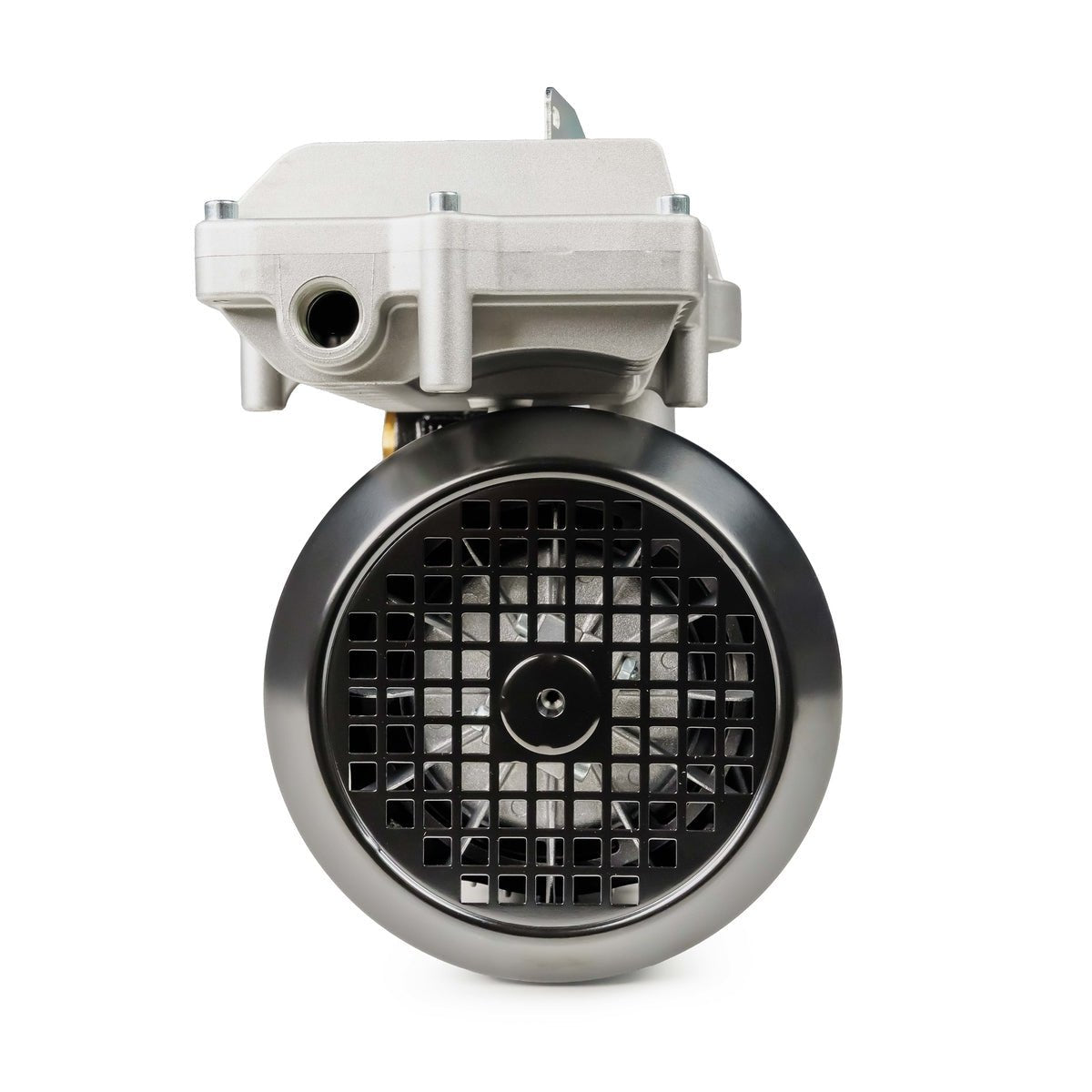

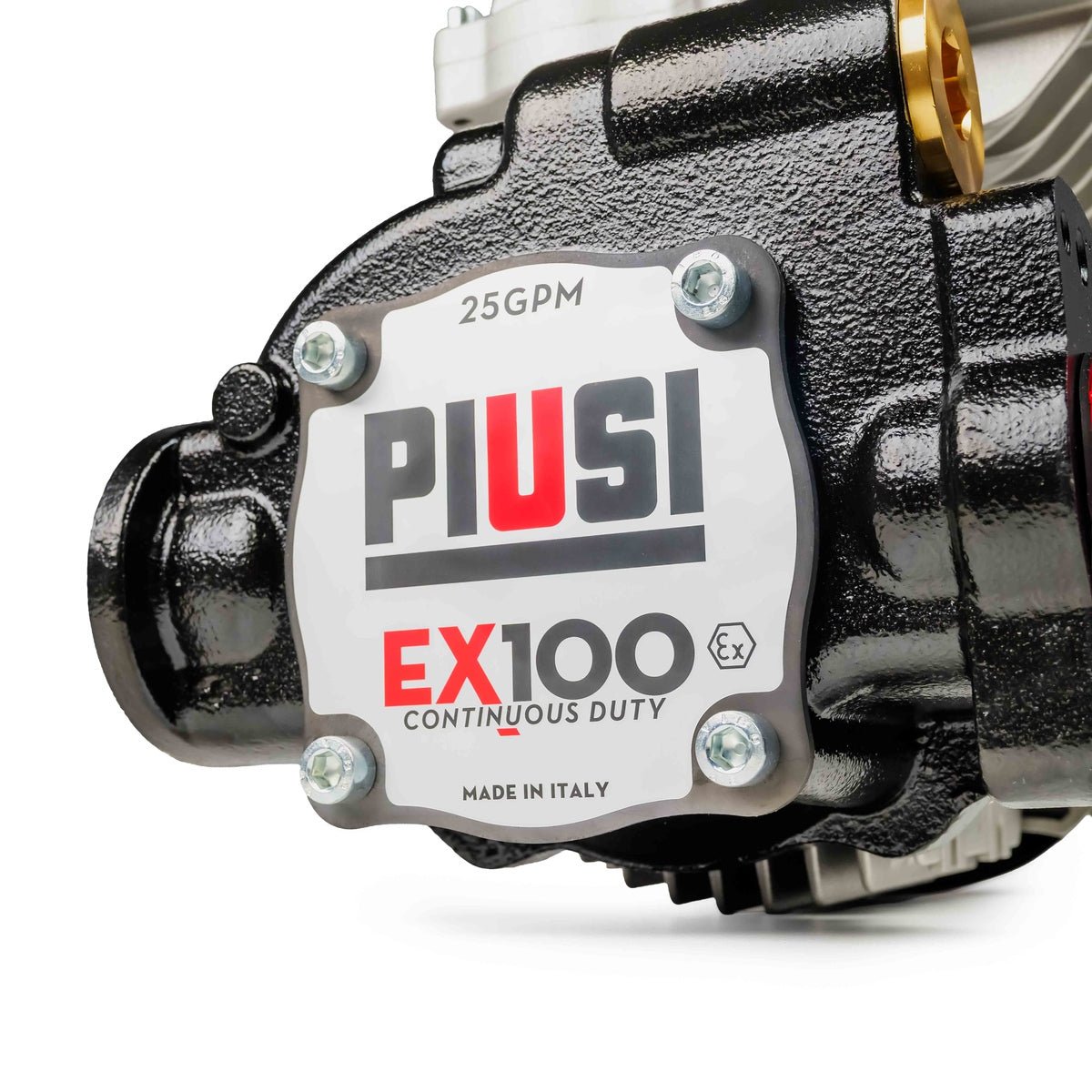

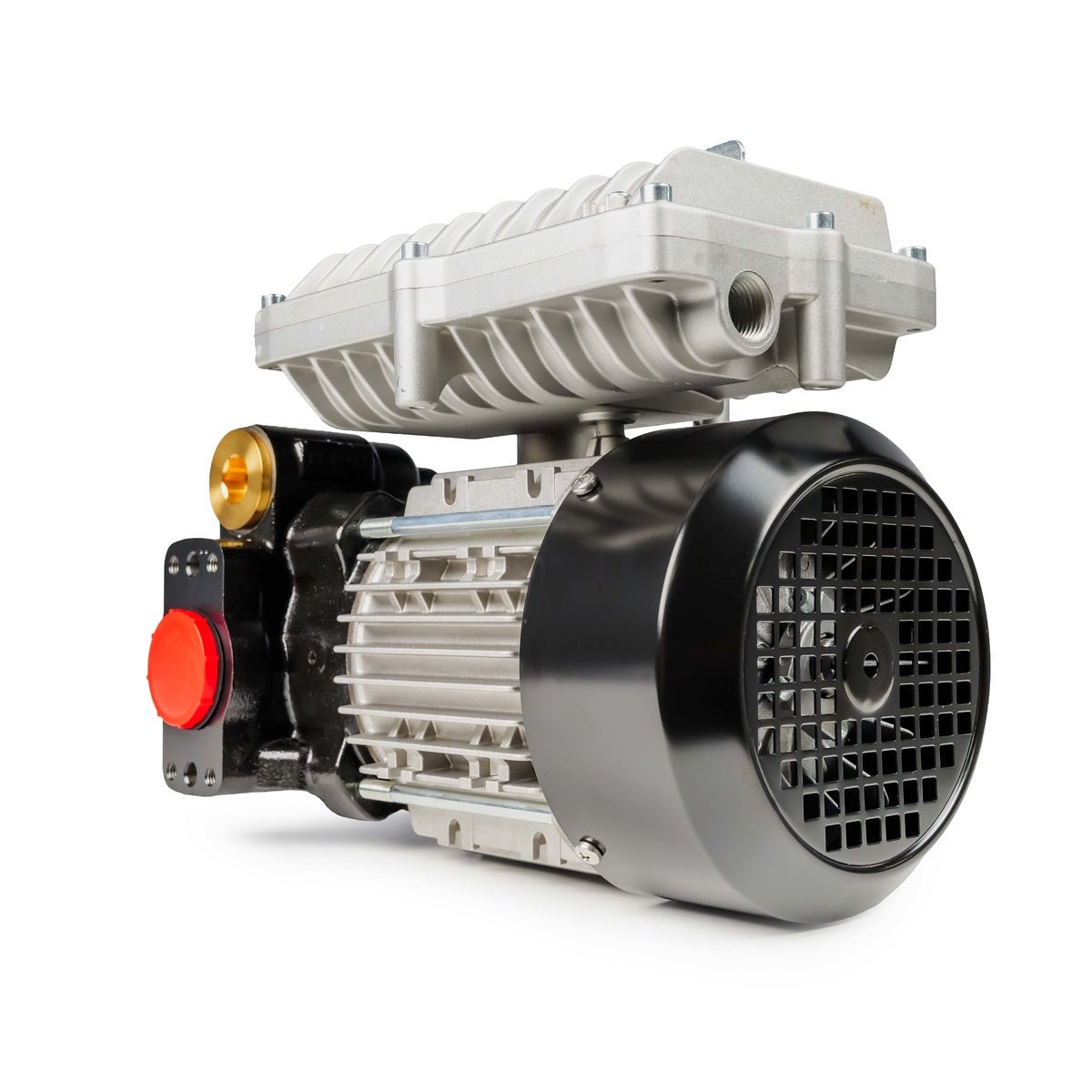

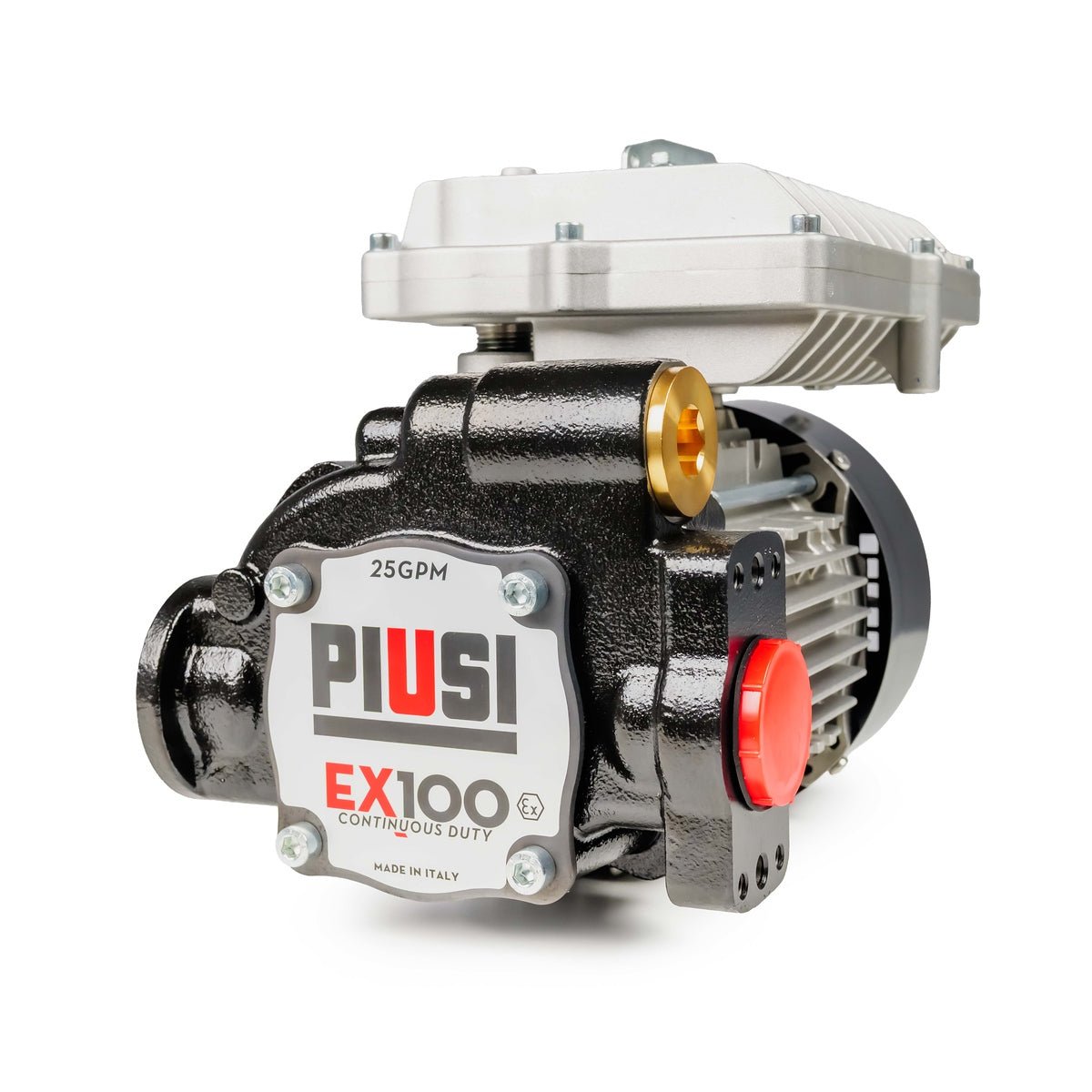

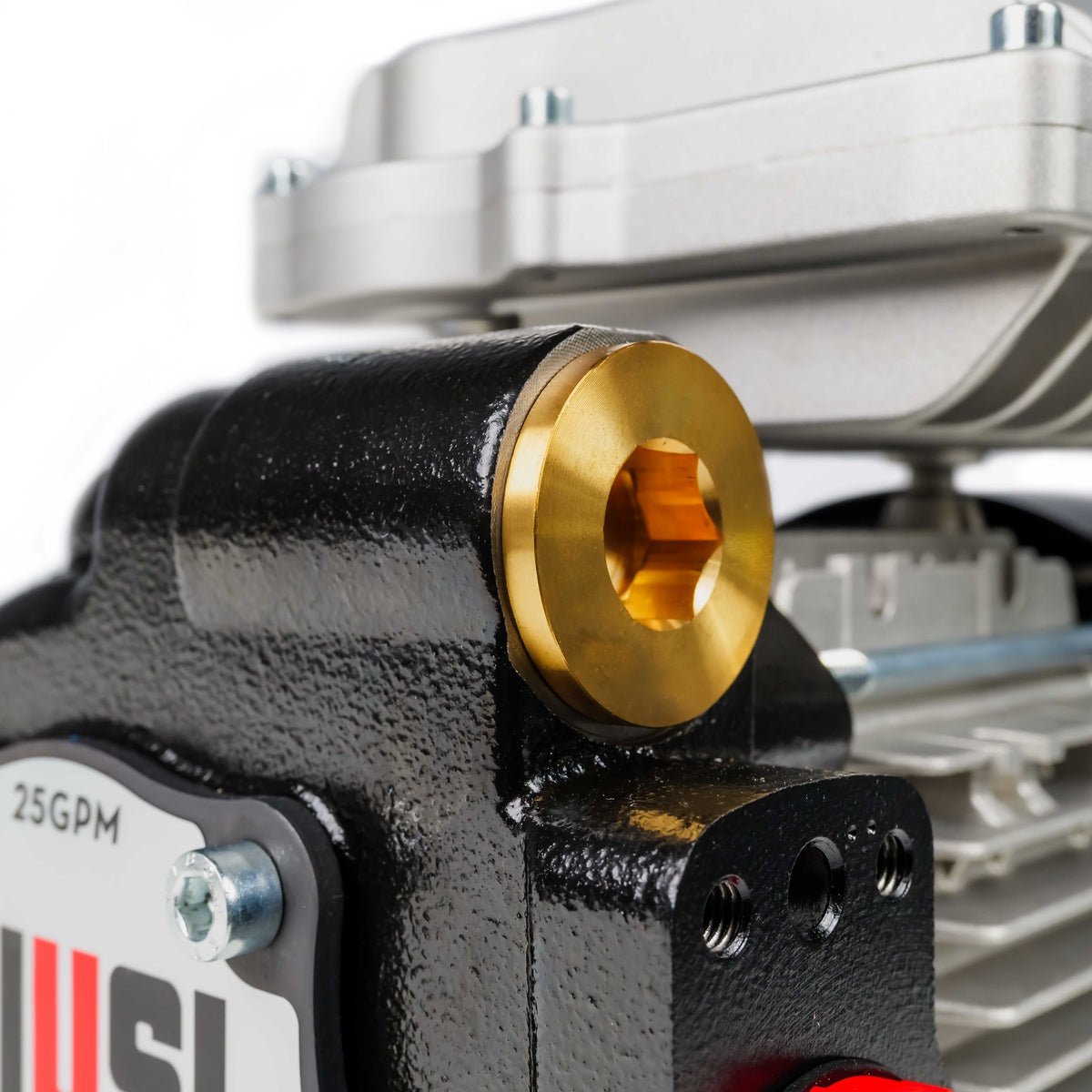

PIUSI PUMP 240V AC 100lpm EX100 · F00390010

$2,574.00

Shipping calculated at checkout

Quantity:

The Piusi EX100 is an ATEX Zone 1 / Zone 2 explosion-proof transfer pump for diesel, petrol, kerosene, AVGAS, and Jet A/A1. With 100 l/min continuous flow at 240V AC and IECEx Ex d IIA T4 Gb certification, it's the heavy-duty workhorse for refuelling petrol-engine plant, aircraft ground support, marine bunkering, and any application where flammable hydrocarbons need to move fast and legally.

Cast-iron pump body, sintered-steel rotor, technopolymer vanes, and Viton seals - this is a continuous-duty pump rated for industrial and logistics service. Removable feet let you bolt it down or carry it between jobs. Thermal protection and an automatic motor cut-out keep it running safely on long fills.

Key Features

  • Flow rate 100 l/min (25 GPM) at 230V/50Hz, 1035W motor, 4.5 A max draw, 1450 RPM
  • ATEX II 2 G Ex d IIA T4 Gb / IECEx certified for Zone 1 / Zone 2
  • Continuous duty (S1) with thermal motor protection
  • Cast-iron pump body, sintered-steel rotor, technopolymer vanes, Viton seals
  • Built-in bypass valve and ON/OFF switch
  • Inlet 1-1/4" BSP, outlet 1" BSP
  • Suction lift 2 m without NRV, 4 m with NRV (max 6 m total head)
  • Removable mounting feet for bolt-down or portable use
  • Operating temp -20 to +40 deg C

Applications

  • Petrol, diesel, and kerosene transfer in hazardous-area workshops and yards
  • Aviation ground refuelling for AVGAS 100/100LL and Jet A/A1 (pump and meter only)
  • Marine bunkering on private wharves where flammable liquids are handled
  • Mining, civil, and industrial fuel transfer where ATEX certification is mandatory
  • Replacement for non-ATEX pumps when changing fluid from diesel to petrol
  • Refuelling petrol-driven plant equipment such as compactors, pumps, and small gensets

What's Included

  • EX100 ATEX pump head
  • Removable mounting feet
  • Instruction manual
  • ATEX/IECEx certification documentation
  • 12-month manufacturer warranty

Pump only. Hose, nozzle, and meter sold separately - speak to us for matched ATEX components. For installation, commissioning, or technical enquiries, contact GO Industrial at sales@goind.com.au or call 07 3204 2240.
