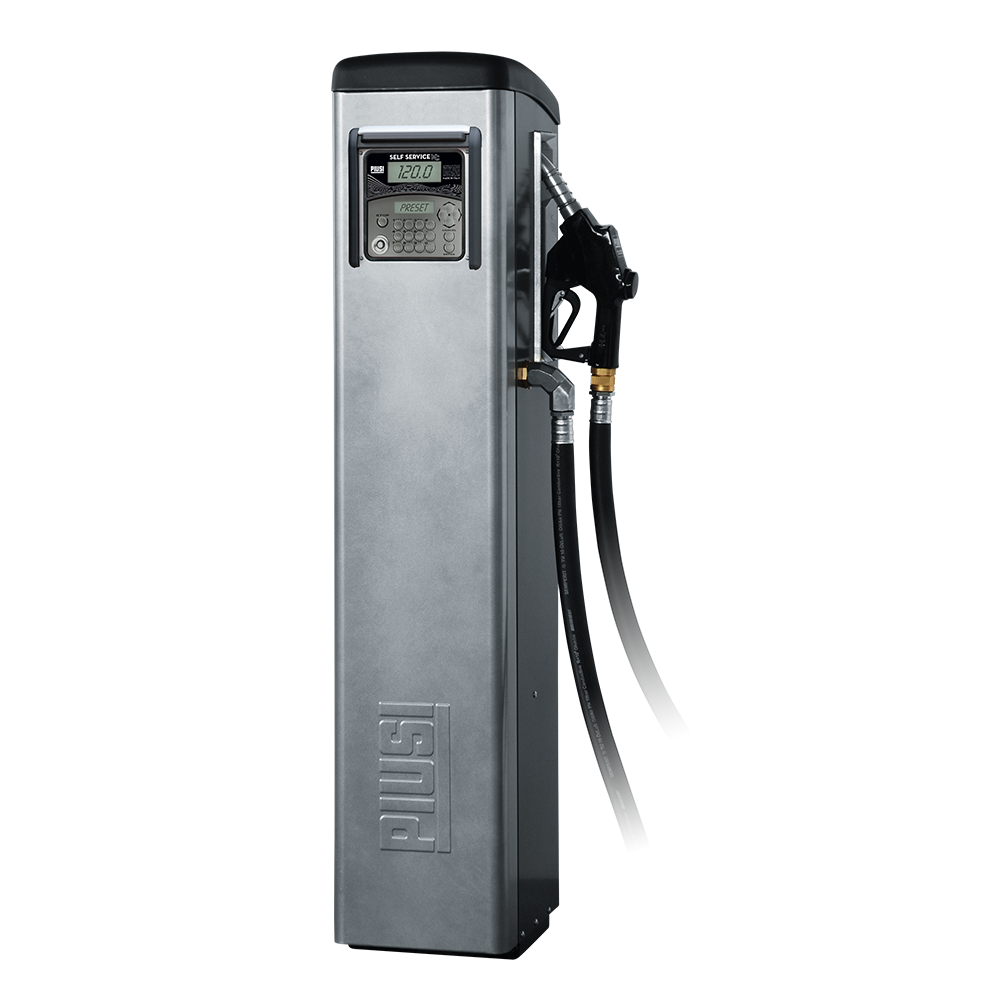

Piusi Self Service 100 MC Fuel Management System 240V AC

FEATURES

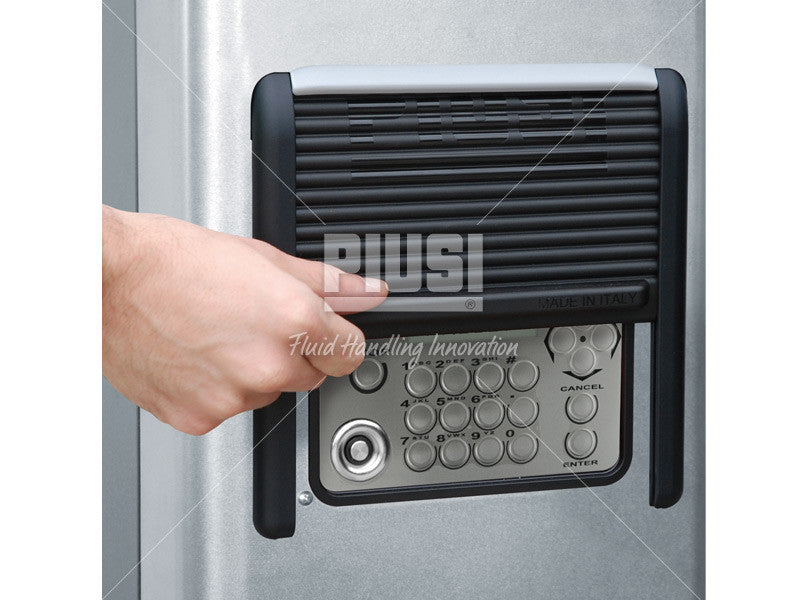

• Integrated roller shutter to provide sun protection to the screen and pin pad assembly

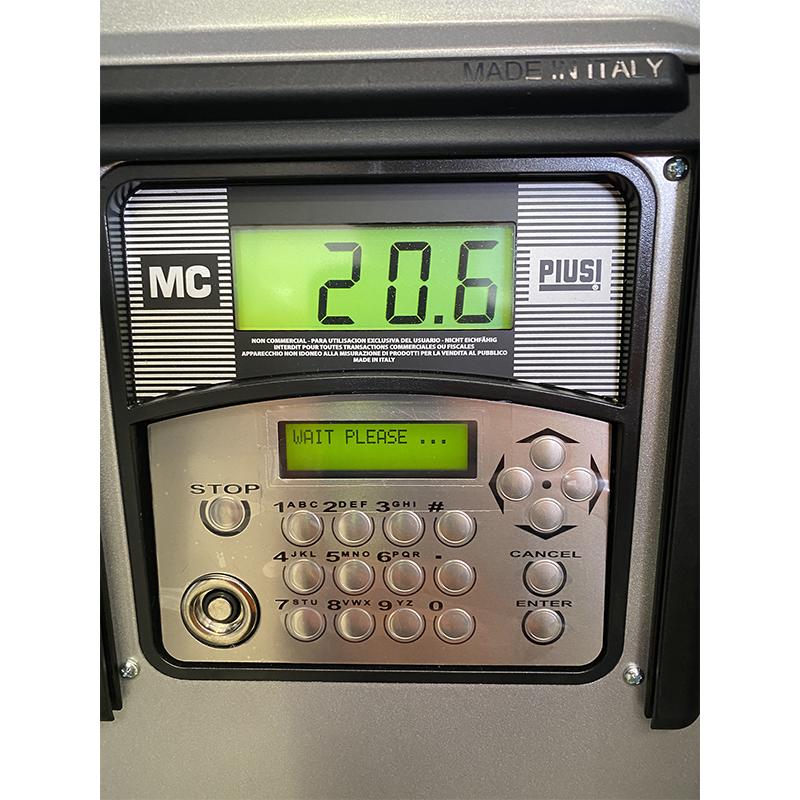

• Console interfaces include:

-External Nozzle Switch

-Automatic Tank Gauge

-Pulse Meter Input

-Pump Relay

• The Piusi Self Service MC will:

-Authorise dispensing of fluids to approved users

-Authorisation can be via a PIN or Yellow User Key (i Button)

-Record the date / time / volume of fluid dispensed, the user details, vehicle details suxch as number plate (system accepts up to 10 alphanumeric characters) and odometer / engine hours (system accepts up to 6 numeric characters)

-Allow for the dispensing of preset volumes of fluid

-Operate an external nozzle switch

-Manage a relay that will turn off the pump in the event of minimum level in the tank

• Data can be downloaded using one of the following methods

-i Button - Red Managers Key i Button that interfaces with a USB Key Reader to your site PC

-Direct PC Connection - RS Converter with USB Plug for direct PC connection.  The maximum distance of the PC from the Console is 1000m for direct connection

-Printer - A Printer can be connected using a RS Converter

SPECIFICATIONS

• Fluid: Diesel
• Supply: 230V AC, 50 Hz
• Pump: Vane pump with built in bypass
• Meter: Oval gear
• Filter: Water absorption filter
• Nozzle: Automatic with swivel connection
• Transaction memory: Last 255 operations
• User identification: Magnetic keys
• Software: SSM 2018 compatible
• Protection: IP55
