Adam by Piusi PUMP 240V AC KIT 100lpm DT1004JAUSM11
OVERVIEW

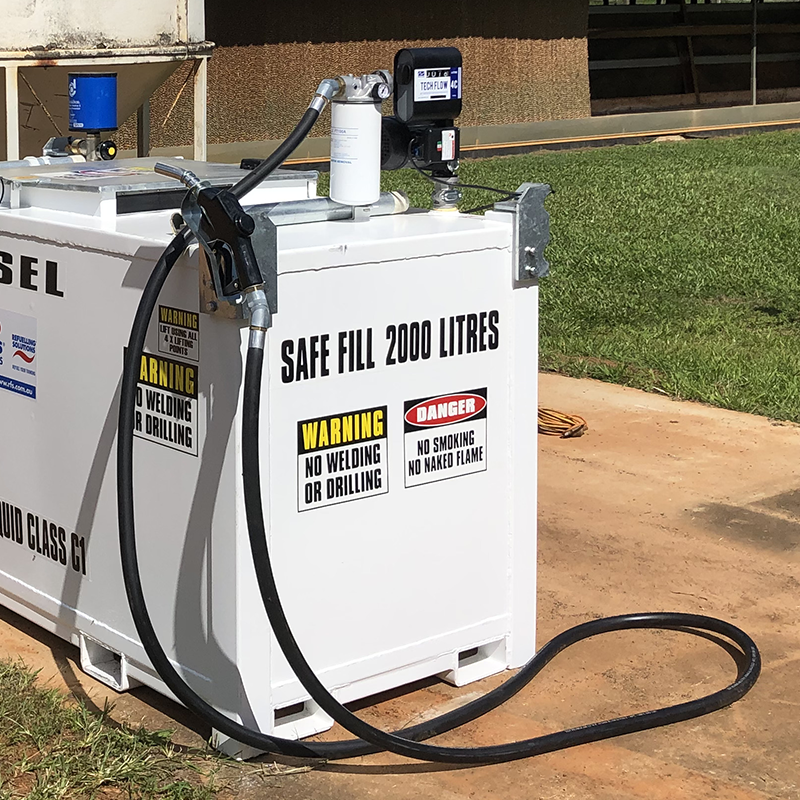

Designed and manufactured by Adam Pump, a Piusi group company, in Italy. This Plug and Play Pump Kit is designed for the dispensing of diesel from Self Bunded Tanks, Single Wall Tanks and Drums.
This 240V AC kit will reliably dispense diesel at an end of nozzle flow rate of 100lpm.
Pump Information

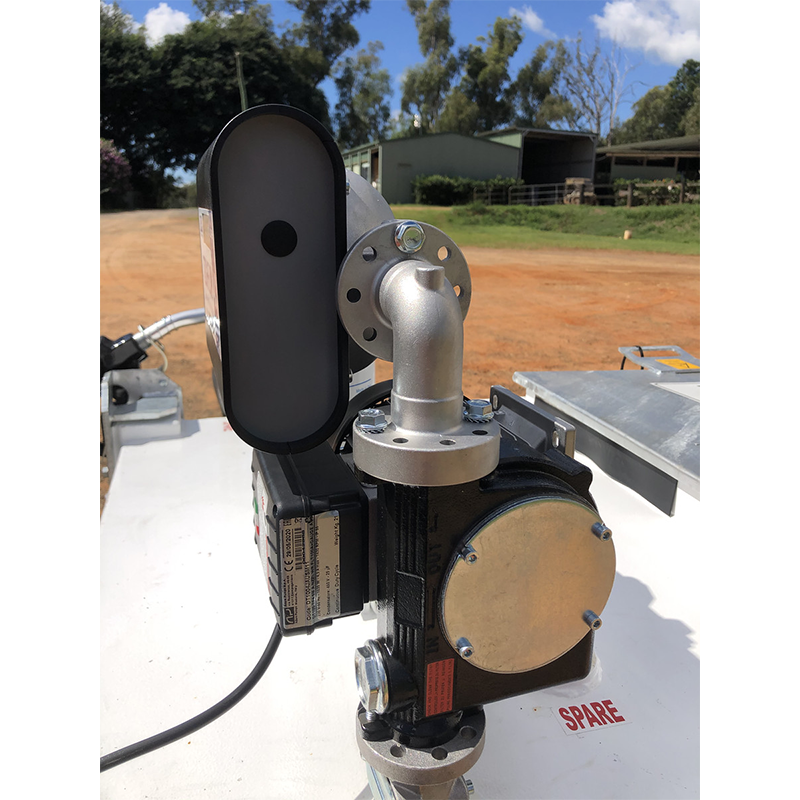

Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the PA2 240V 100lpm Pump, from GO Industrial, features a self-ventilated single phase, continuous duty motor with IP55 protection, class F insulation and thermal overload protection engineered into the electric motor.
Filter Information

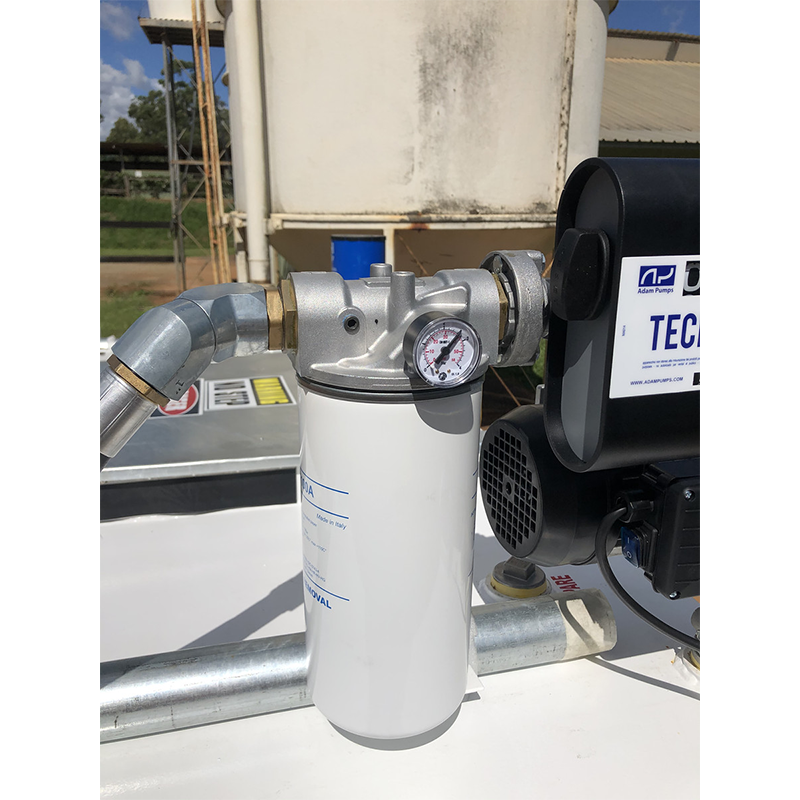

Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the FT10XA Filter Kit, from GO Industrial, provides 30um Particulate and Water Filtration and is suitable to use in a diesel dispensing application up to 100lpm. This filter kit features a Saturation Level Indicator Pressure Gauge
Meter Information
The TF4S1 4 Digit Mechanical Meter, from GO Industrial, is supplied with nutating disk for the high precision measurement of diesel fuel. The Meter is fitted with a totaliser, a counter, and a side knob for resetting the counter. The fuel outlet direction can be adjusted according to the application at hand. The Meter is also fitted with a calibration screw for precision adjustment. The meter can be mounted on electric pumps or used in gravity applications.

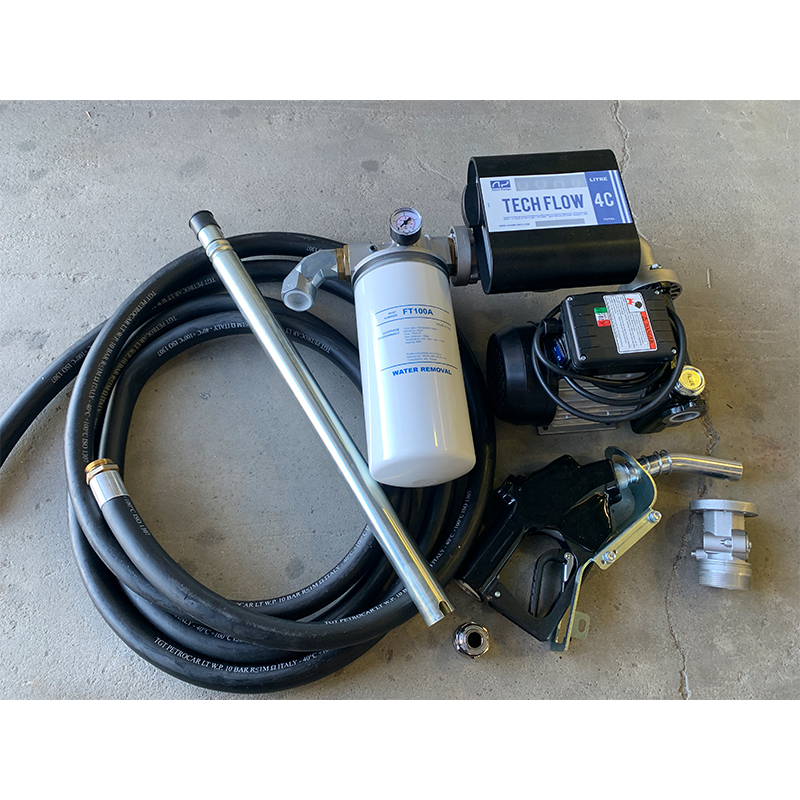

What's in the Box ?
- SUCTION SPEAR - Telescopic Suction Spear and Drum / Tank Adaptor,
- PUMP - 240V AC 100lpm PA2 Pump,
- FILTER - FT10XA Particulate / Water Filter with pressure gauge,
- METER - 4 Digit Mechanical Meter,
- HOSE - 6m x 25mm ID Hose Scr Male BSP Ends,
- SWIVEL - Dual Plane Swivel,
- NOZZLE - Auto Shut Off Nozzle
